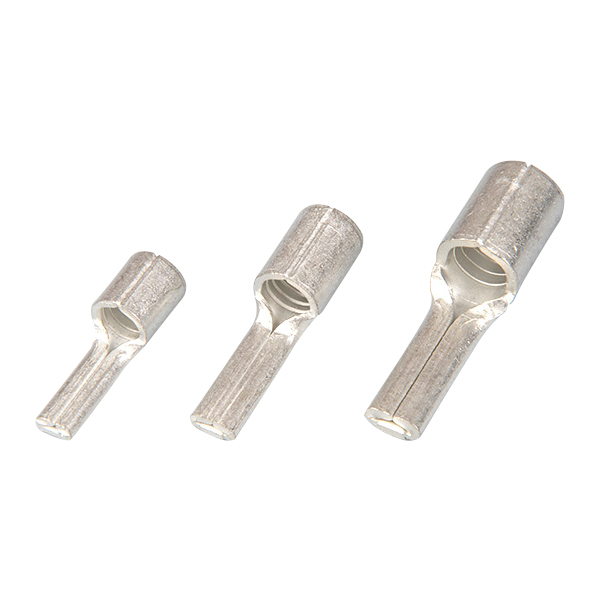

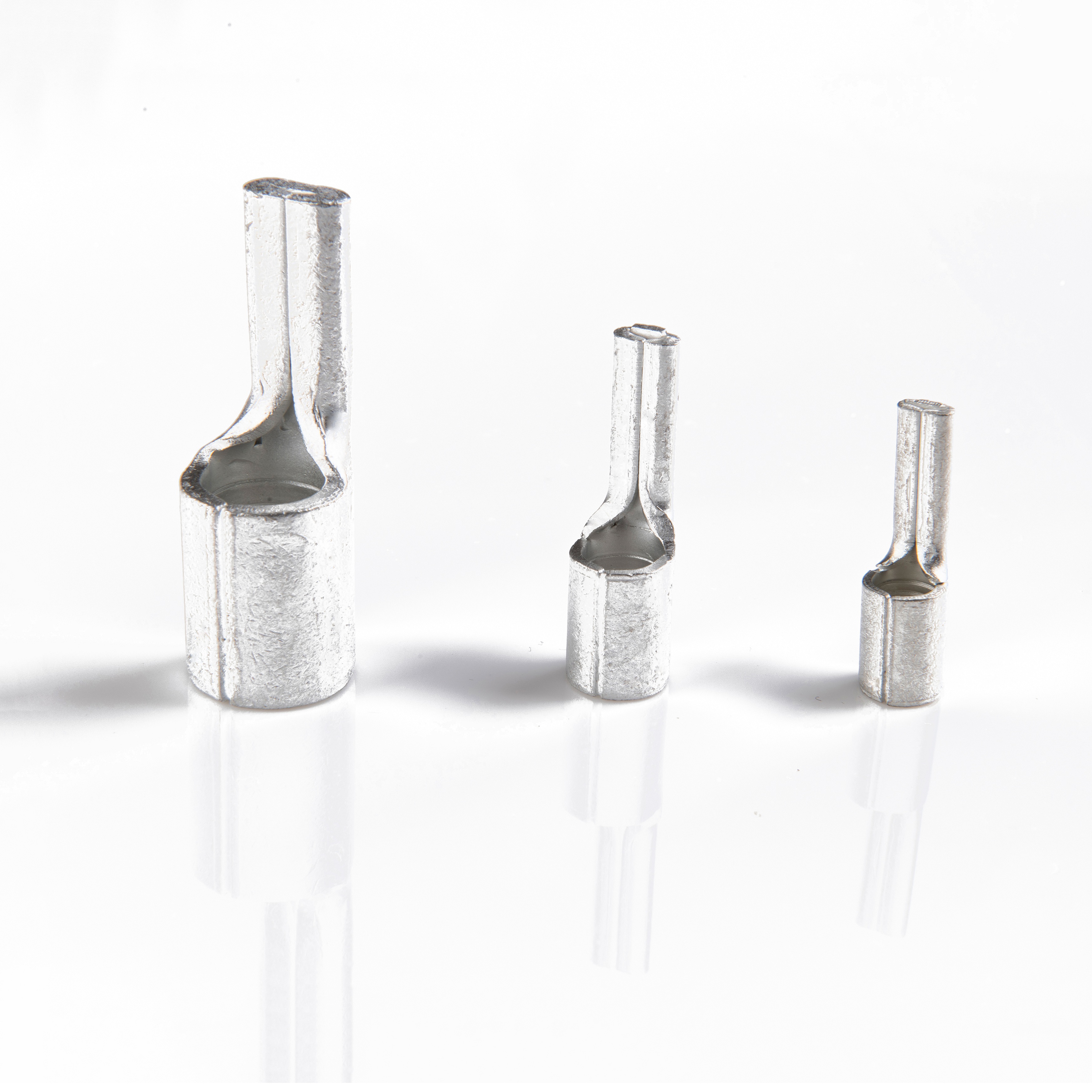

Non-Insulated Pin Brazed Seam Terminal

Short Description:

Product Feature

●Conductor:Copper

●Insulation:Non-lnsulated

●Finished:Tin-Plated / Brazed seam

Characteristics

●Fit all popular pin-types fEuropeanl terminal blocks

●Allow for quick wire connects and disconnects from components where set screws or clamps are used to make

electrical contact with the wire


Product Detail

FAQ

Product Tags

400像素16 副本

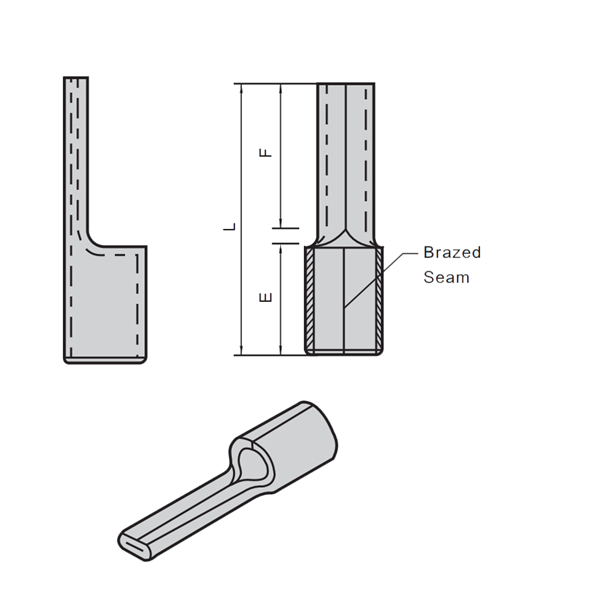

NON-INSULATED PIN BRAZE SEAM TERMINAL
ITEM NO. Material : Copper Finished : Tin-Plated / Braze Seam Wire Size I Max
Dimension (mm)
W F L E D d H T mm² A
PTNB 10-12 4.3 12.0 22.0 8.0 6.9 4.7 2.4 1.0 6-10 60
PTNB 16-13 5.5 14.0 27.0 10.0 8.4 5.8 2.6 1.2 10-16 90
PTNB 25-15 6.8 16.0 33.5 13.5 9.5 7.0 2.6 1.2 16-25 100
PTNB 35-20 8.0 20.0 40.5 16.0 11.7 8.4 3.2 1.5 35 120
PTNB 50-22 9.5 20.0 45.5 19.0 13.6 9.6 3.8 1.8 50 150
PTNB 70-23 11.0 23.0 55.5 24.0 15.9 11.4 4.2 2.0 70 210
PTNB 95-27 12.5 27.0 55.5 25.0 18.9 13.5 5.2 2.5 95 238
PTNB 120-34 15.0 30.0 58.6 25.0 21.0 15.0 5.4 2.7 120 300
PTNB 150-37 16.5 30.0 63.5 27.8 23.1 6.5 6.4 3.3 150 370
PTNB 185-38 19.5 30.0 71.0 35.0 26.0 19.0 6.8 3.5 185 400
PTNB 240-44 21.5 32.0 83.5 40.7 29.0 21.0 8.2 4.0 240 480
PTNB 300-45 23.5 34.0 87.0 44.0 32.1 23.5 8.4 4.3 300 560
PTNB 400-38 27.0 35.0 93.0 48.4 36.0 27.0 8.8 4.5 400 815
