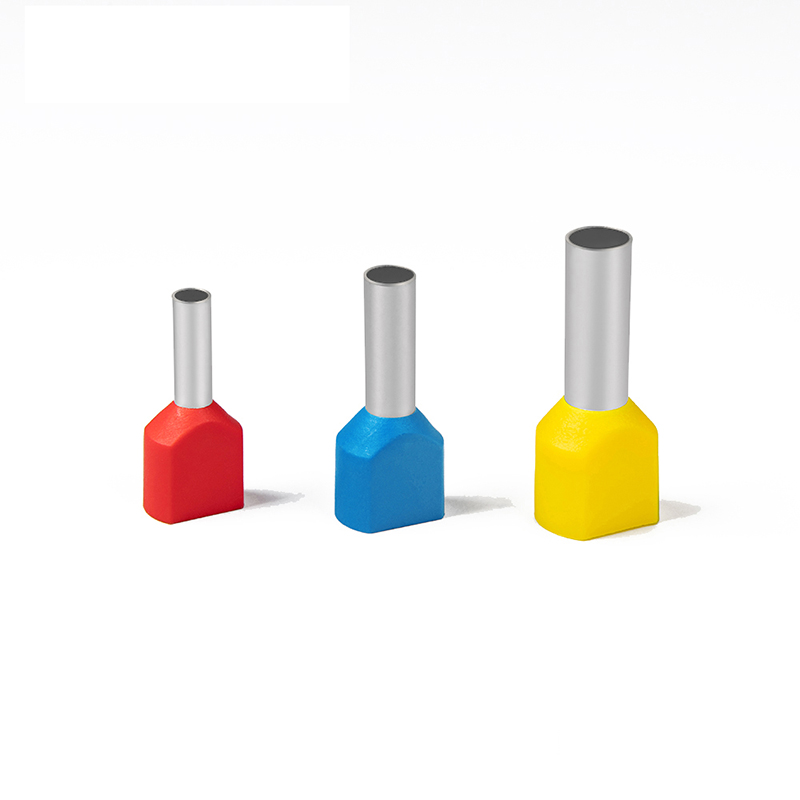

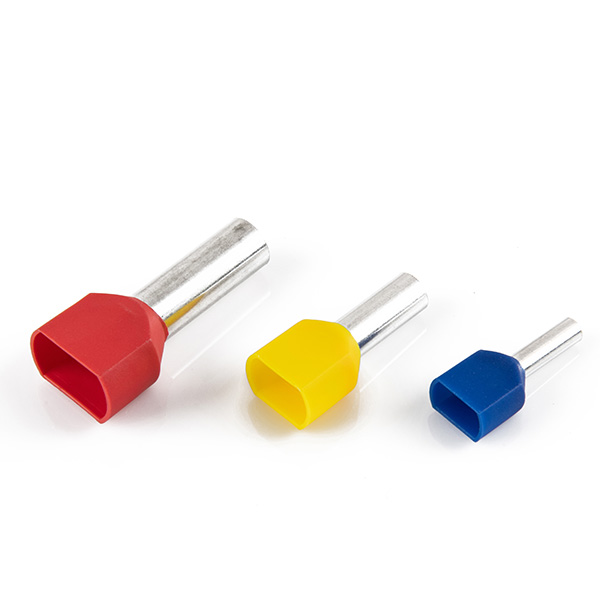

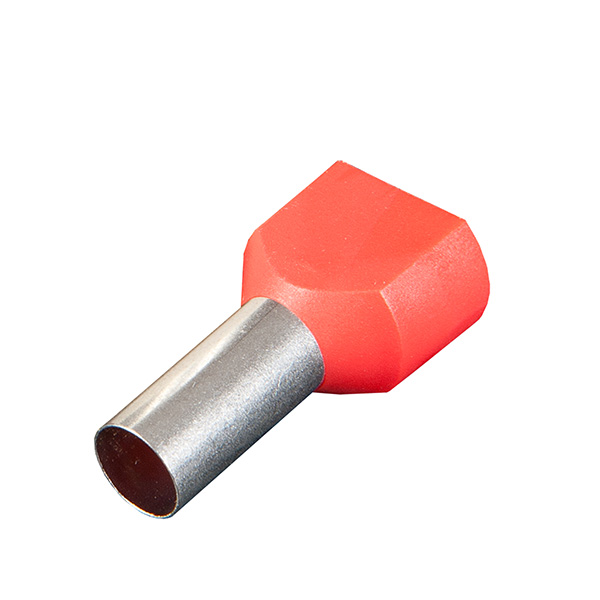

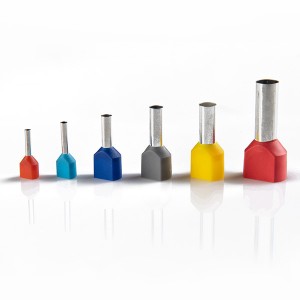

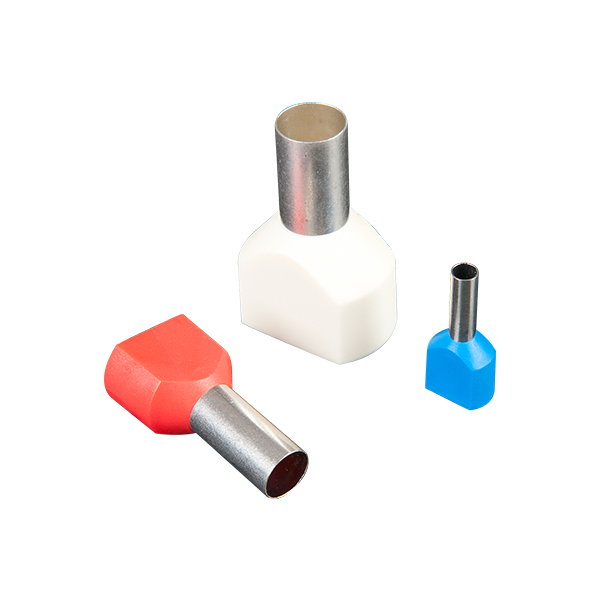

Nylon-Insulated Twin Cord End Terminal

Product Feature

●Material：Copper

●Insulation ： Nylon

●SurfaceTreatment：Tin-Plated

Characteristics

●Heat resistant：-30~100℃

●Design the twin double wire crimping structure to save the connection space

●According to UL 486 requirements

● max voltage:105℃ Ui=300V ● material:copper ● insulating material: pp.nylon

Insulated Twin Cord End Terminal
Max voltage : 150℃ Ui=300V			Material : Copper		Insulating material : PP.Nylon

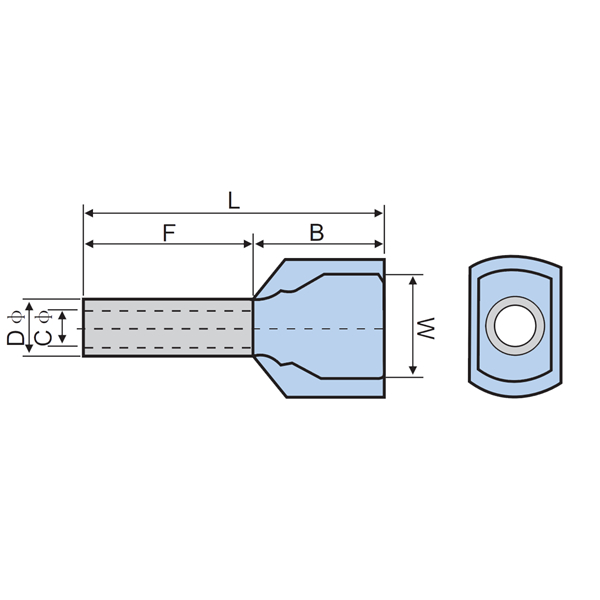

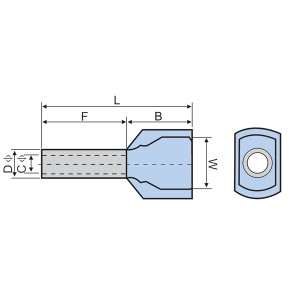

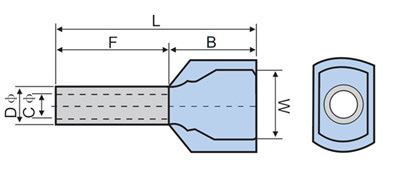

ITEM NO	Dimension (mm)						Cable size
ITEM NO	F	L	W	E	D	C	mm²	A.W.G.
TE0508	8.0	15.0	5.0	6.5	1.8	1.5	2 * 0.5	2 * 22
TE0510	10.0	17.0	5.0	6.5	1.8	1.5	2 * 0.5	2 * 22
TE0512	12.0	19.0	5.0	6.5	1.8	1.5	2 * 0.5	2 * 22
TE0518	18.0	25.0	5.0	6.5	1.8	1.5	2 * 0.5	2 * 22
TE7508	8.0	15.6	5.3	6.7	2.1	1.8	2 * 0.75	2 * 20
TE7510	10.0	17.6	5.3	7.7	2.1	1.8	2 * 0.75	2 * 20
TE7512	12.0	19.6	5.3	7.7	2.1	1.8	2 * 0.75	2 * 20
TE7518	18.0	25.6	5.3	7.7	2.1	1.8	2 * 0.75	2 * 20
TE1008	8.0	16.2	5.5	7.1	2.4	2.1	2 * 1.0	2 * 18
TE1010	10.0	18.2	5.5	8.1	2.4	2.1	2 * 1.0	2 * 18
TE1012	12.0	20.2	5.5	8.1	2.4	2.1	2 * 1.0	2 * 18
TE1018	18.0	26.2	5.5	8.1	2.4	2.1	2 * 1.0	2 * 18
TE1508	8.0	16.0	6.0	7.2	2.6	2.3	2 * 1.5	2 * 16
TE1510	10.0	18.0	6.0	7.2	2.6	2.3	2 * 1.5	2 * 16
TE1512	12.0	20.0	6.0	8.2	2.6	2.3	2 * 1.5	2 * 16
TE1518	18.0	26.0	6.0	8.2	2.6	2.3	2 * 1.5	2 * 16
TE2508	8.0	17.8	7.8	8.5	3.3	2.9	2 * 2.5	2 * 14
TE2510	10.0	20.0	7.8	9.5	3.3	2.9	2 * 2.5	2 * 14
TE2513	13.0	23.0	7.8	10.5	3.3	2.9	2 * 2.5	2 * 14
TE2518	18.0	28.0	7.8	10.5	3.3	2.9	2 * 2.5	2 * 14
TE4012	12.0	22.2	8.5	11.1	4.2	3.8	2 * 4.0	2 * 12
TE6014	14.0	25.2	9.5	12.1	5.3	4.9	2 * 6.0	2 * 10
TE10-14	14.0	26.0	12.6	12.0	6.9	6.5	2 * 10.0	2 * 8
TE16-14	14.0	30.3	19.0	17.3	8.7	8.3	2 * 16.0	2 * 6
