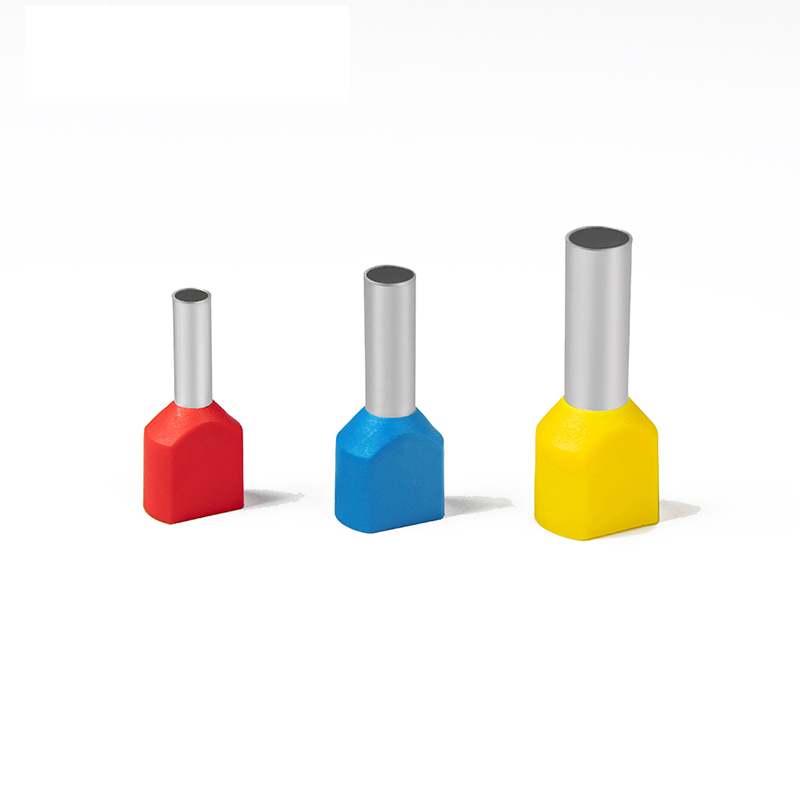

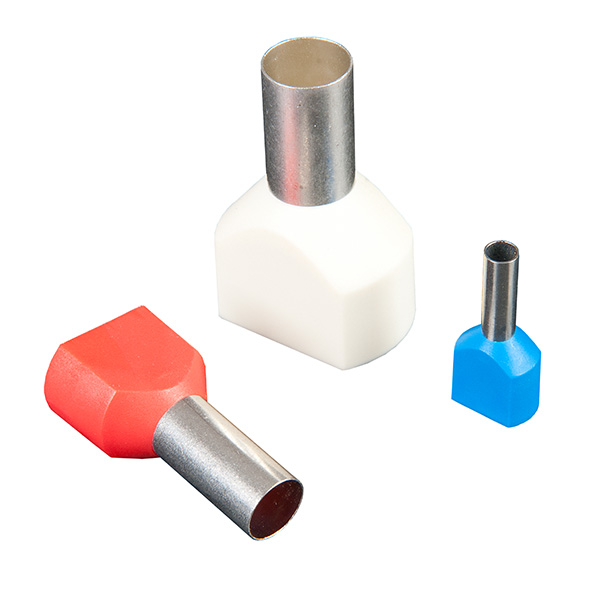

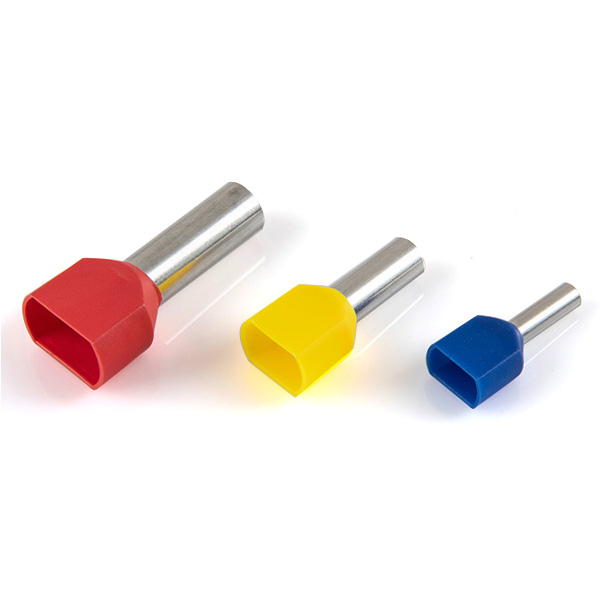

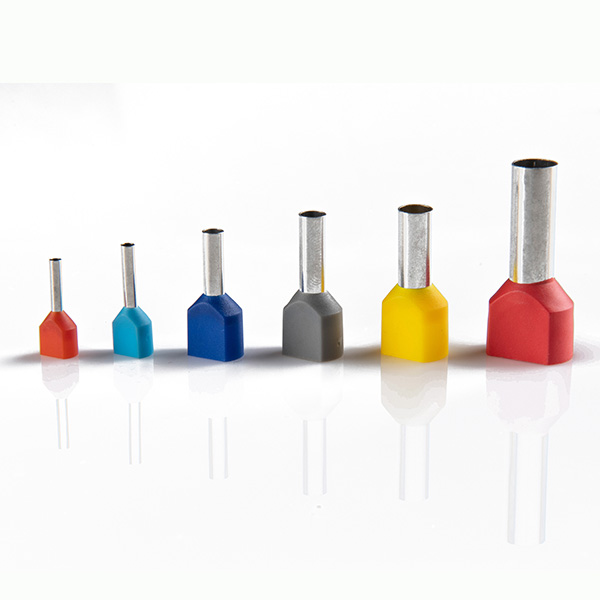

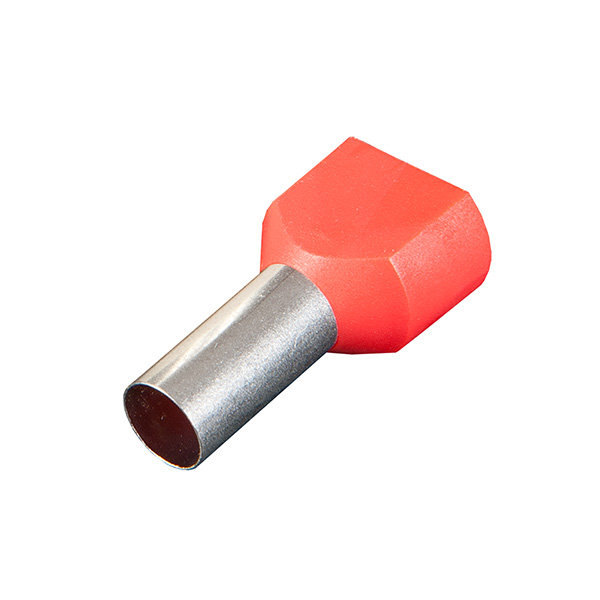

PP-Insulated Twin Cord End Termina

Short Description:

Product Feature

●MaterialCopper

●InsulationPP

●SurfaceTreatment:Tin-Plated

Characteristics

●Heat resistant:-20~100

●Design the twin double wire crimping structure to save the connection space

●According to UL 486 requirements


Product Detail

FAQ

Product Tags

TE 副本

Insulated Twin Cord End Terminal
Max voltage : 150℃  Ui=300V Material : Copper Insulating material : PP.Nylon

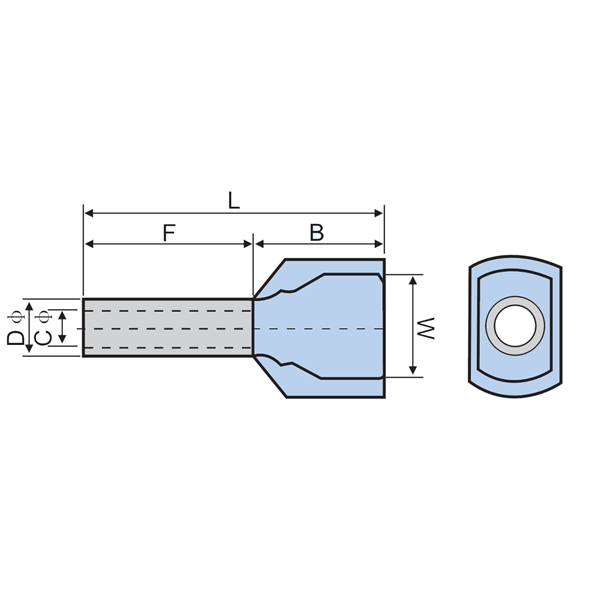

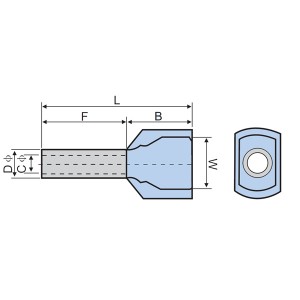

ITEM NO Dimension   (mm) Cable size
F L W E D C mm² A.W.G.
TE0508 8.0 15.0 5.0 6.5 1.8 1.5 2 * 0.5 2 * 22
TE0510 10.0 17.0 5.0 6.5 1.8 1.5 2 * 0.5 2 * 22
TE0512 12.0 19.0 5.0 6.5 1.8 1.5 2 * 0.5 2 * 22
TE0518 18.0 25.0 5.0 6.5 1.8 1.5 2 * 0.5 2 * 22
TE7508 8.0 15.6 5.3 6.7 2.1 1.8 2 * 0.75 2 * 20
TE7510 10.0 17.6 5.3 7.7 2.1 1.8 2 * 0.75 2 * 20
TE7512 12.0 19.6 5.3 7.7 2.1 1.8 2 * 0.75 2 * 20
TE7518 18.0 25.6 5.3 7.7 2.1 1.8 2 * 0.75 2 * 20
TE1008 8.0 16.2 5.5 7.1 2.4 2.1 2 * 1.0 2 * 18
TE1010 10.0 18.2 5.5 8.1 2.4 2.1 2 * 1.0 2 * 18
TE1012 12.0 20.2 5.5 8.1 2.4 2.1 2 * 1.0 2 * 18
TE1018 18.0 26.2 5.5 8.1 2.4 2.1 2 * 1.0 2 * 18
TE1508 8.0 16.0 6.0 7.2 2.6 2.3 2 * 1.5 2 * 16
TE1510 10.0 18.0 6.0 7.2 2.6 2.3 2 * 1.5 2 * 16
TE1512 12.0 20.0 6.0 8.2 2.6 2.3 2 * 1.5 2 * 16
TE1518 18.0 26.0 6.0 8.2 2.6 2.3 2 * 1.5 2 * 16
TE2508 8.0 17.8 7.8 8.5 3.3 2.9 2 * 2.5 2 * 14
TE2510 10.0 20.0 7.8 9.5 3.3 2.9 2 * 2.5 2 * 14
TE2513 13.0 23.0 7.8 10.5 3.3 2.9 2 * 2.5 2 * 14
TE2518 18.0 28.0 7.8 10.5 3.3 2.9 2 * 2.5 2 * 14
TE4012 12.0 22.2 8.5 11.1 4.2 3.8 2 * 4.0 2 * 12
TE6014 14.0 25.2 9.5 12.1 5.3 4.9 2 * 6.0 2 * 10
TE10-14 14.0 26.0 12.6 12.0 6.9 6.5 2 * 10.0 2 * 8
TE16-14 14.0 30.3 19.0 17.3 8.7 8.3 2 * 16.0 2 * 6
