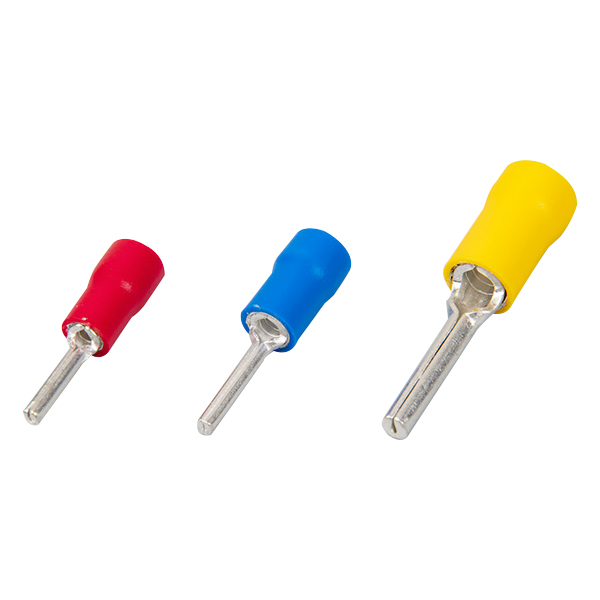

Pvc-Insualted Pin Terminal
| Insulated Pin Terminal | |||||||||

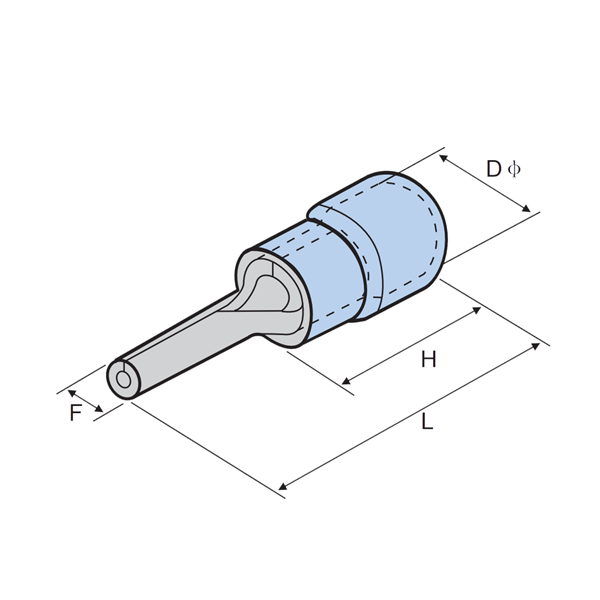

| ITEM NO. | Dimension (mm) | Cable Size | Thickness | I max | Color | ||||
| F | L | H | D | mm² | A.W.G. | mm | A | ||
| PTV 1.25-9 | 1.9 | 19.0 | 10.0 | 4.3 | 0.5-1.5 | 22-16 | 0.75 | 19 | Red |
| PTV 1.25-10 | 1.9 | 20.0 | 10.0 | 4.3 | 0.5-1.5 | 22-16 | 0.75 | 19 | |
| PTV 1.25-12 | 1.9 | 22.0 | 10.0 | 4.3 | 0.5-1.5 | 22-16 | 0.75 | 19 | |
| PTV 1.25-13 | 1.9 | 23.0 | 10.0 | 4.3 | 0.5-1.5 | 22-16 | 0.75 | 19 | |
| PTV 1.25-18 | 1.9 | 28.0 | 10.0 | 4.3 | 0.5-1.5 | 22-16 | 0.75 | 19 | |
| PTV 2-9 | 1.9 | 19.0 | 10.0 | 4.9 | 1.5-2.5 | 16-14 | 0.8 | 27 | Blue |
| PTV 2-10 | 1.9 | 20.0 | 10.0 | 4.9 | 1.5-2.5 | 16-14 | 0.8 | 27 | |
| PTV 2-12 | 1.9 | 22.0 | 10.0 | 4.9 | 1.5-2.5 | 16-14 | 0.8 | 27 | |
| PTV 2-13 | 1.9 | 23.0 | 10.0 | 4.9 | 1.5-2.5 | 16-14 | 0.8 | 27 | |
| PTV 2-18 | 1.9 | 28.0 | 10.0 | 4.9 | 1.5-2.5 | 16-14 | 0.8 | 27 | |
| PTV 3.5-10 | 2.8 | 20.0 | 13.0 | 6.2 | 2.5-4 | 14-12 | 1.0 | 36 | Black |
| PTV 3.5-13 | 2.8 | 25.0 | 13.0 | 6.2 | 2.5-4 | 14-12 | 1.0 | 36 | |
| PTV 5.5-13 | 2.8 | 25.5 | 13.0 | 6.7 | 4-6 | 12-10 | 1.0 | 48 | Yellow |
| PTV 5.5-18 | 2.8 | 30.5 | 13.0 | 6.7 | 4-6 | 12-10 | 1.0 | 48 | |
