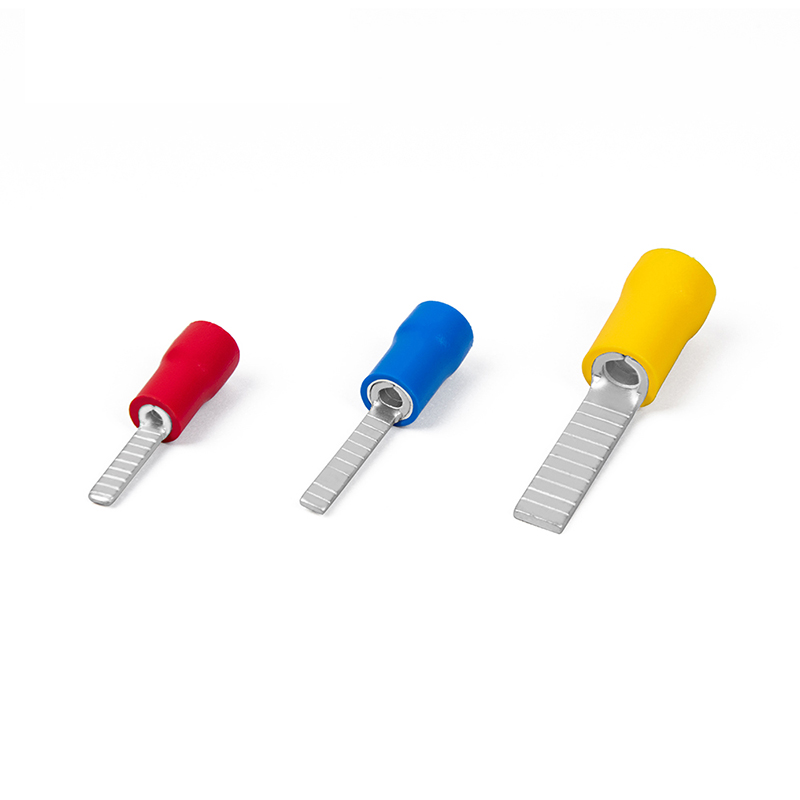

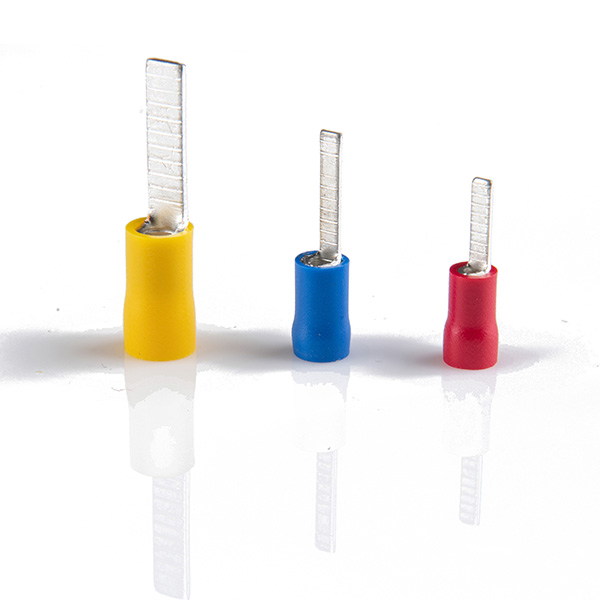

Pvc-Insulated Blade Terminal

Short Description:

Product Feature

●MaterialCopper

●Insulation PVC

●Surface Treatment:Tin-Plated/Brazedseam

Characteristics

●Heat resistant:-10~75C

●Allow for quick wire connects and disconnects from components where set screws are used to make electrical contact with the wire


Product Detail

FAQ

Product Tags

400像素10 副本
● Cable size:0.5~1.5mm (A.W.G. 22-16)              ●  max current: Imax=19A                ●  material: copper                        ● thickness:0.75mm

Insulated Blade Terminal

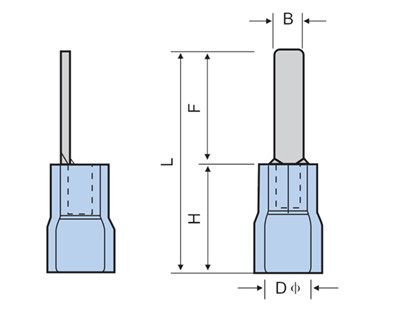

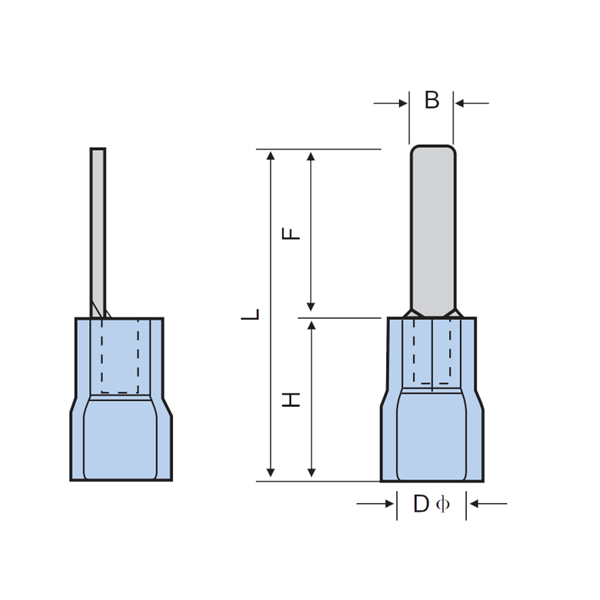

ITEM NO. Dimension  (mm) Cable Size
A.W.G
Thickness I Max Color
B L F H D mm² A.W.G. mm² A
DBV 1.25-10 2.3 20.0 10.0 10.0 4.3 0.5-1.5 22-16 0.75 19 Red
DBV 1.25-11 2.3 21.0 11.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBV 1.25-14 2.3 24.0 14.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBV 1.25-18 2.3 28.0 18.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBV 2-10 2.3 19.0 9.0 10.0 4.9 1.5-2.5 16-14 0.8 27 Blue
DBV 2-14 2.3 24.0 14.0 10.0 4.9 1.5-2.5 16-14 0.8 27
DBV 2-18 2.3 28.0 18.0 10.0 4.9 1.5-2.5 16-14 0.8 27

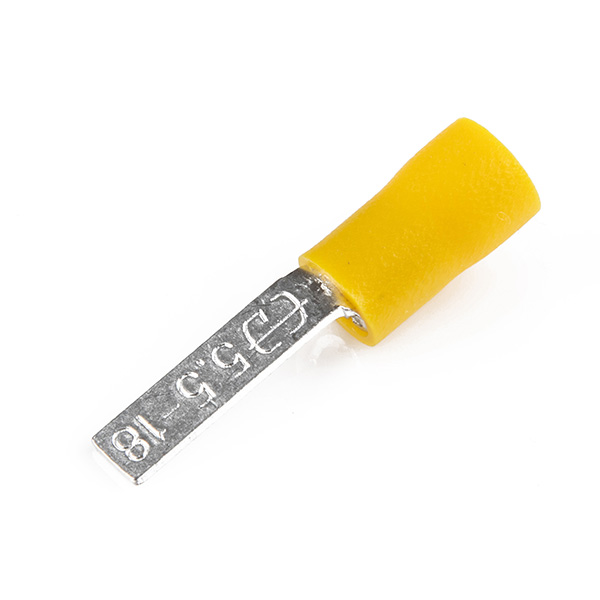

DBV 5.5-10 2.8 22.5 10.0 13.0 5.6 4-6 12-10 1.0 48 Yellow
DBV 5.5-14 4.5 26.5 14.0 13.0 5.6 4-6 12-10 1.0 48
DBV 5.5-18 4.5 30.5 18.0 13.0 5.6 4-6 12-10 1.0 48
