Pvc-Insulated Butt Splice Connector(Seamless)
| PVC-Insulated Butt Splice Connectot | |||||||

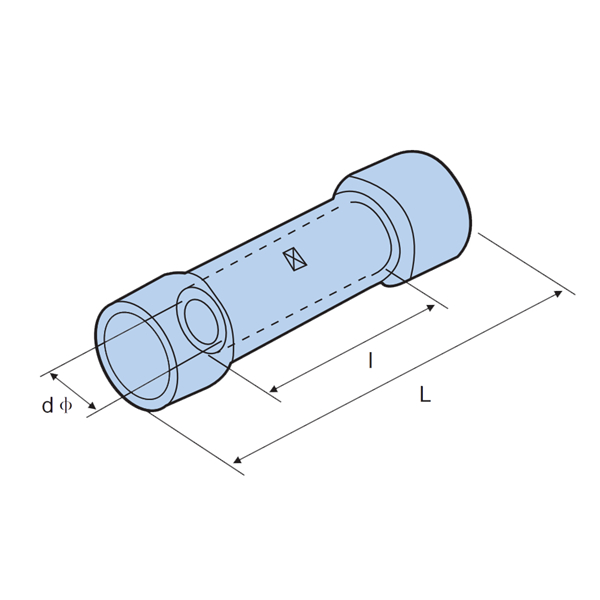

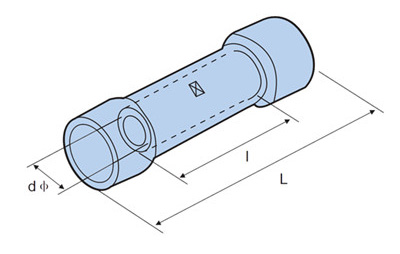

| ITEM NO | Cable size | Dimension (mm) | Imax | Colour | |||
| A.W.G | mm² | I | d | L | A | ||
| BV 1.25 | 22-16 | 0.5-1.5 | 15.0 | 1.7 | 26.0 | 19 | Red |
| BV 2 | 16-14 | 1.5-2.5 | 15.0 | 2.3 | 26.0 | 27 | Blue |
| BV 5.5 | 12-10 | 4-6 | 15.0 | 3.4 | 26.0 | 48 | Yellow |
| BV 8 | 8 | 6-10 | 21.0 | 4.5 | 32.0 | 62 | Red |
| BV 14 | 6 | 10-16 | 26.0 | 5.8 | 42.0 | 88 | Blue |
| BV 22 | 4 | 16-25 | 29.0 | 7.7 | 50.0 | 115 | Yellow |
| BV 38 | 2 | 35-50 | 32.0 | 9.4 | 55.0 | 160 | Red |
