Pvc-Insulated Double Crimp Female & Male Disconnector

Short Description:

Product Feature

●Material:Brass

●InsulationPVC

●Surface Treatment:Tin-Plated

Characteristics

●Heat resistant:-10~75℃

●Design of multi mating structure to be used easy

●The copper sleeve protection terminal and the cable are fully connected and reliable


Product Detail

FAQ

Product Tags

400像素29 副

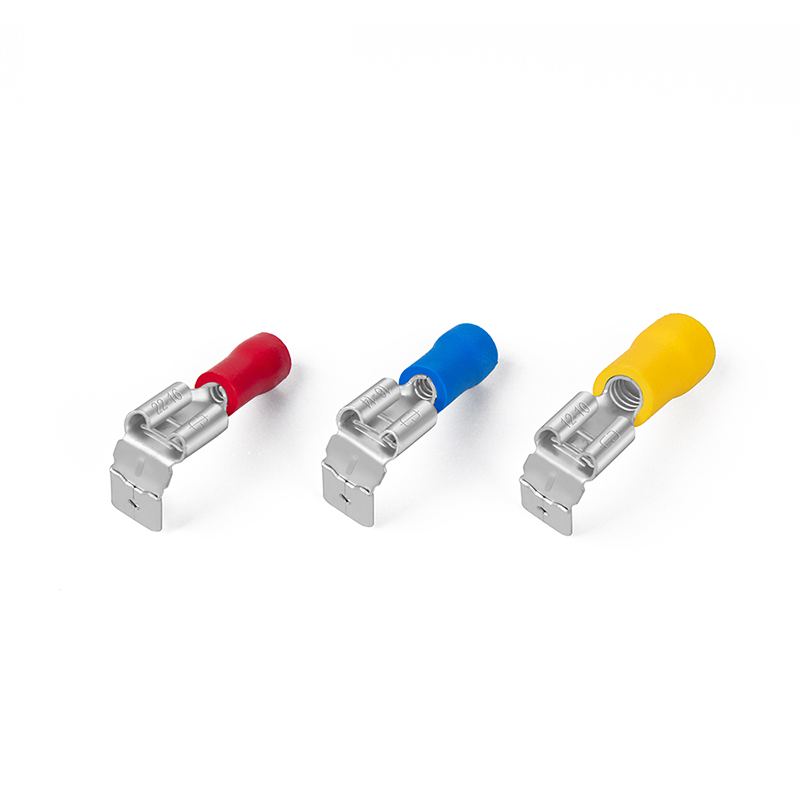

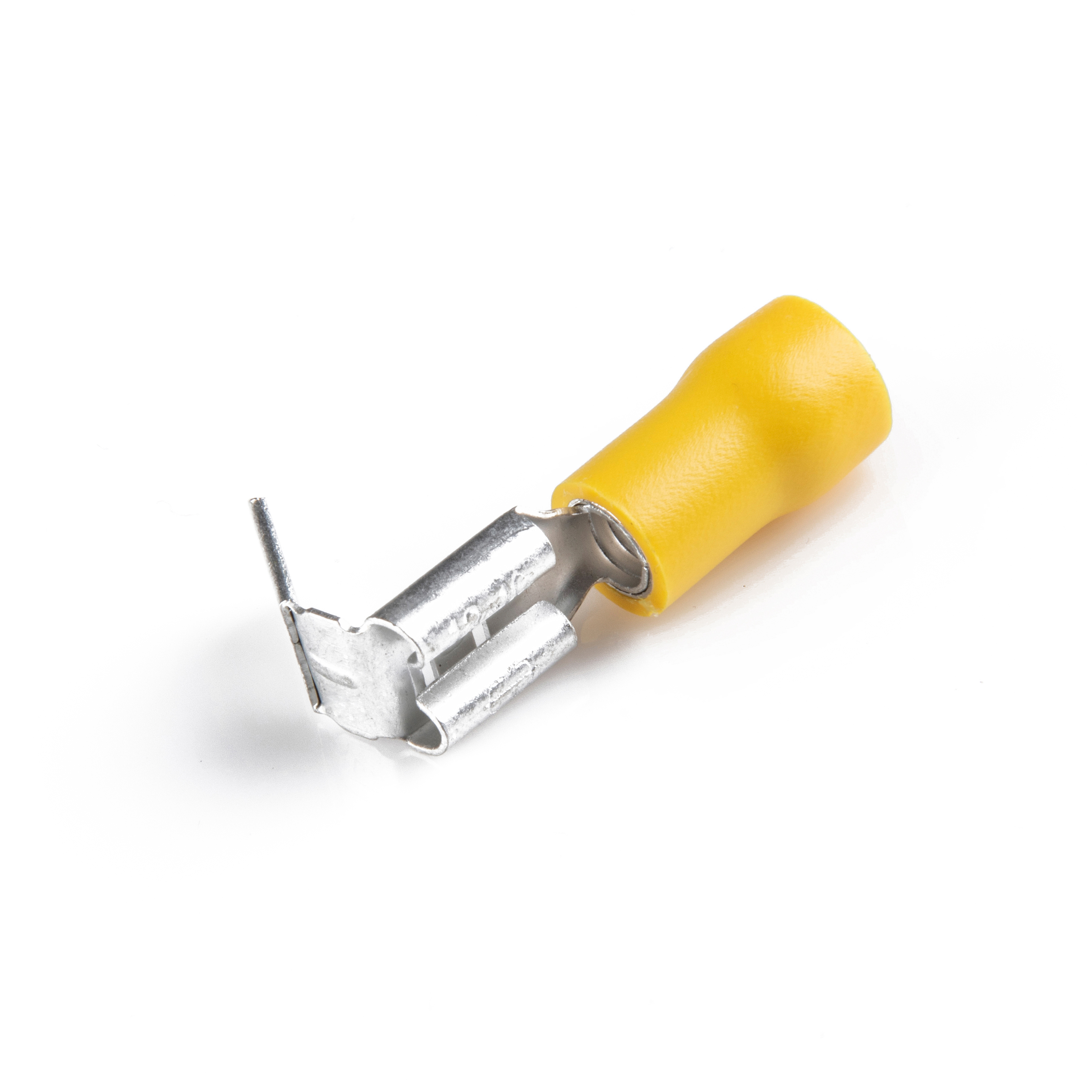

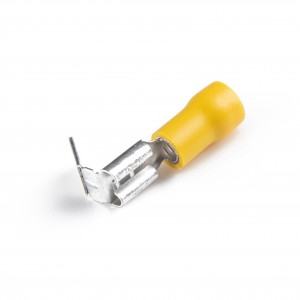

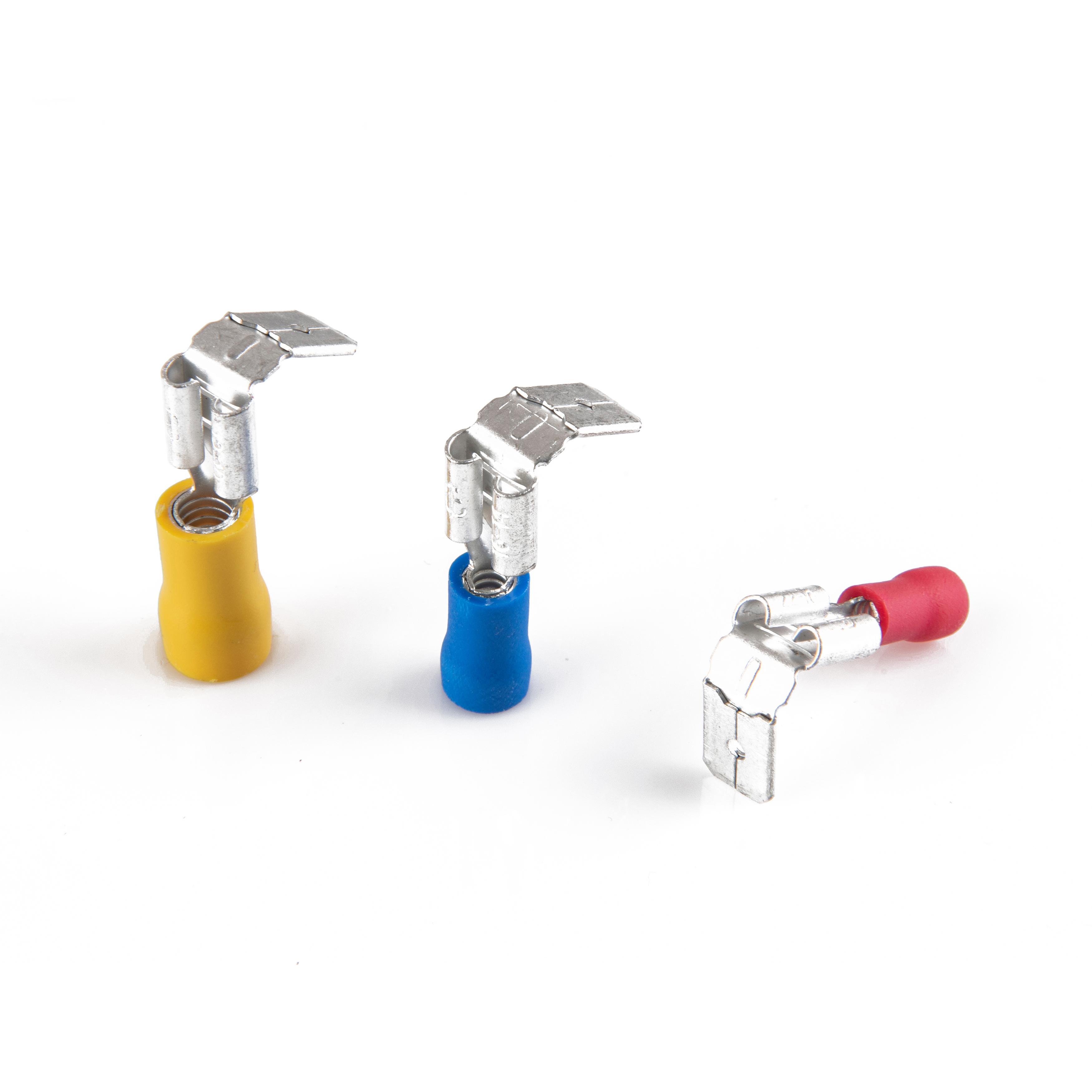

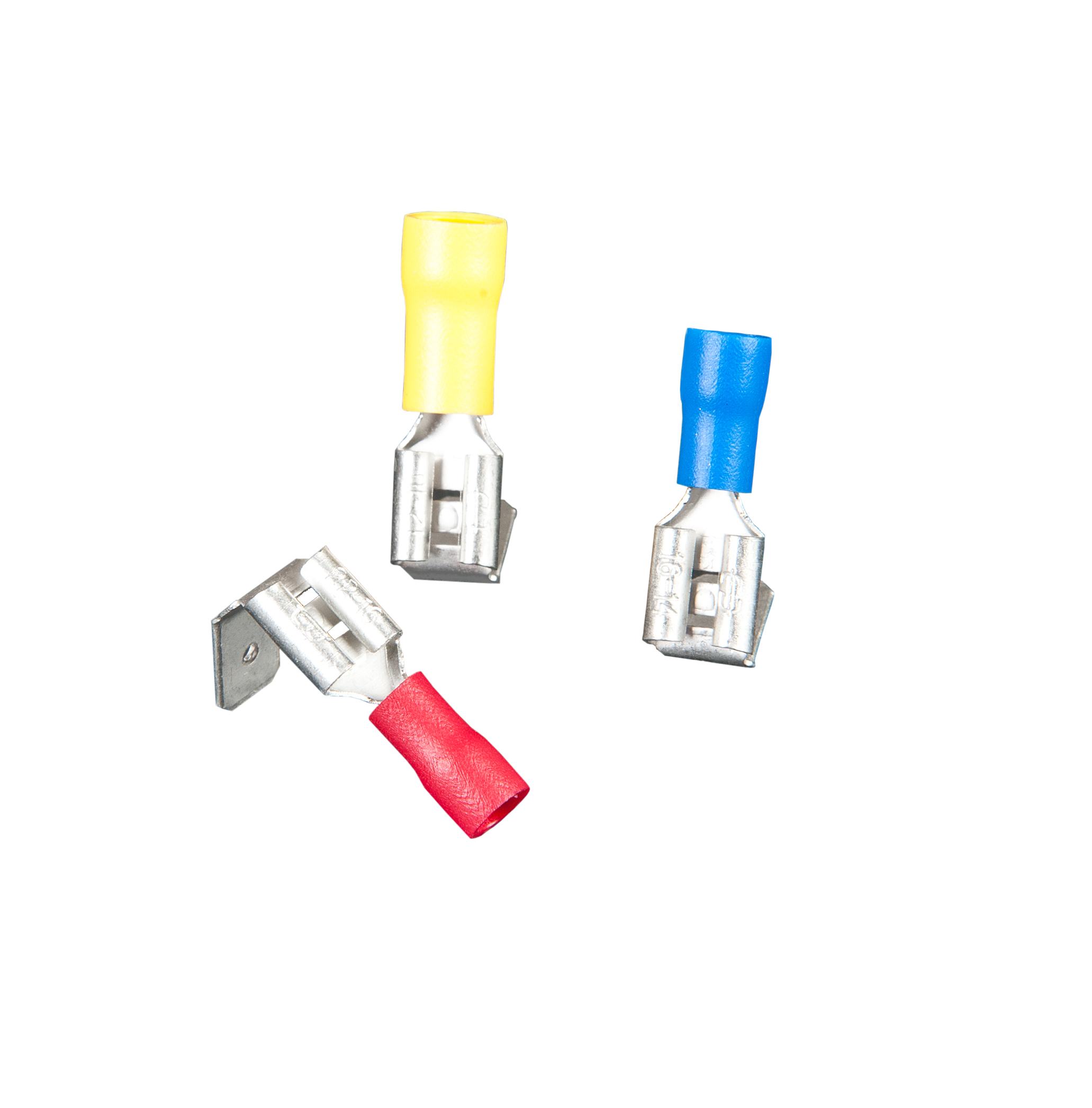

Insulated Double Crimp Piggy Back Disconnector
Material : Brass Insulated : Vinyl.Nylon

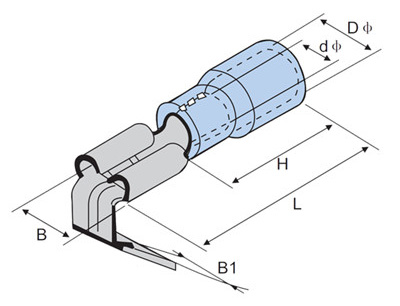

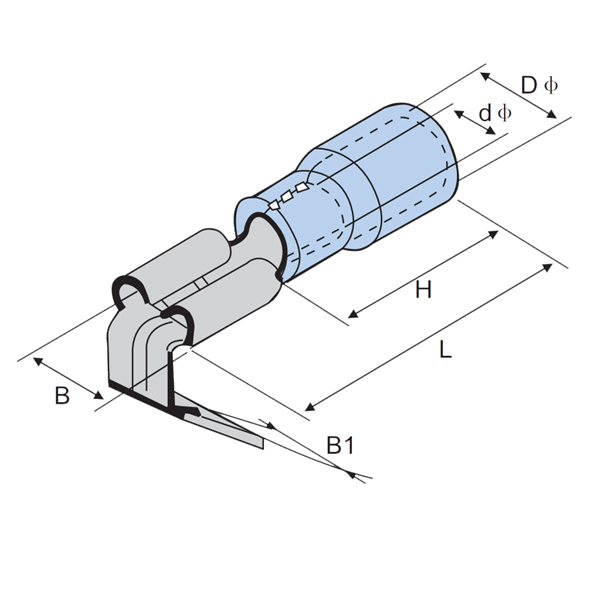

ITEM NO Dimension (mm) Cable Size Imax Nema Tab Color
d B B1 D L mm² A.W.G A
PBDD 1.25-250 1.7 7.4 6.35 3.8 21.5 0.5-1.5 22-16 10 0.8*6.35 Red
PBDD 2-250 2.3 7.4 6.35 4.3 21.5 1.5-2.5 16-14 15 0.8*6.35 Blue
PBDD 5.5-250 3.4 7.4 6.35 5.7 25.0 4-6 12-10 24 0.8*6.35 Yellow
