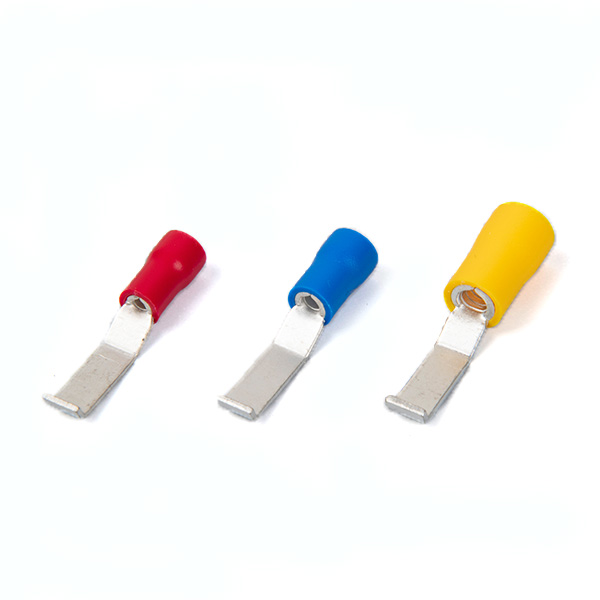

Pvc-Insulated Double Crimp Lipped Blade Terminal

Short Description:

Product Feature

●MaterialCopper

●Insulation PVC

●Surface Treatment:Tin-Plated/Brazedseam

Characteristics

●Heat resistant:-10~75℃

●Reduce possibility of terminal separation

●The Copper sleeve protection terminal and the cable are fully connected and reliable






Product Detail

FAQ

Product Tags

400像素13 副本

Insulated Double Crimp Lipped BladeTerminal
ITEM NO Material : Brass Insulated : PVC

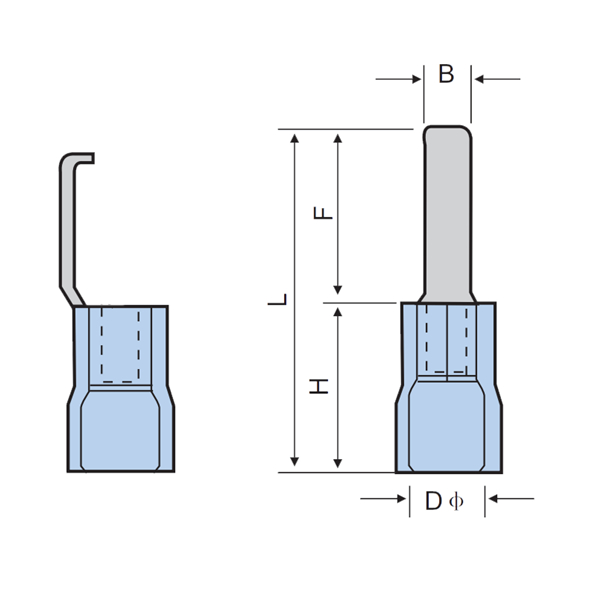

Dimension (mm) Cable Size Imax Thickness Color
L B F D H mm² A.W.G A mm
LBD 1.25-3 26.8 3.0 16.8 4.3 10.0 0.5-1.5 22-16 10 0.75 Red
LBD 1.25-4.6 26.8 4.6 16.8 4.3 10.0 0.5-1.5 22-16 10 0.75
LBD 2-3 26.8 3.0 16.8 4.9 10.0 1.5-2.5 16-14 15 0.8 Blue
LBD 2-4.6 26.8 4.6 16.8 4.9 10.0 1.5-2.5 16-14 15 0.8

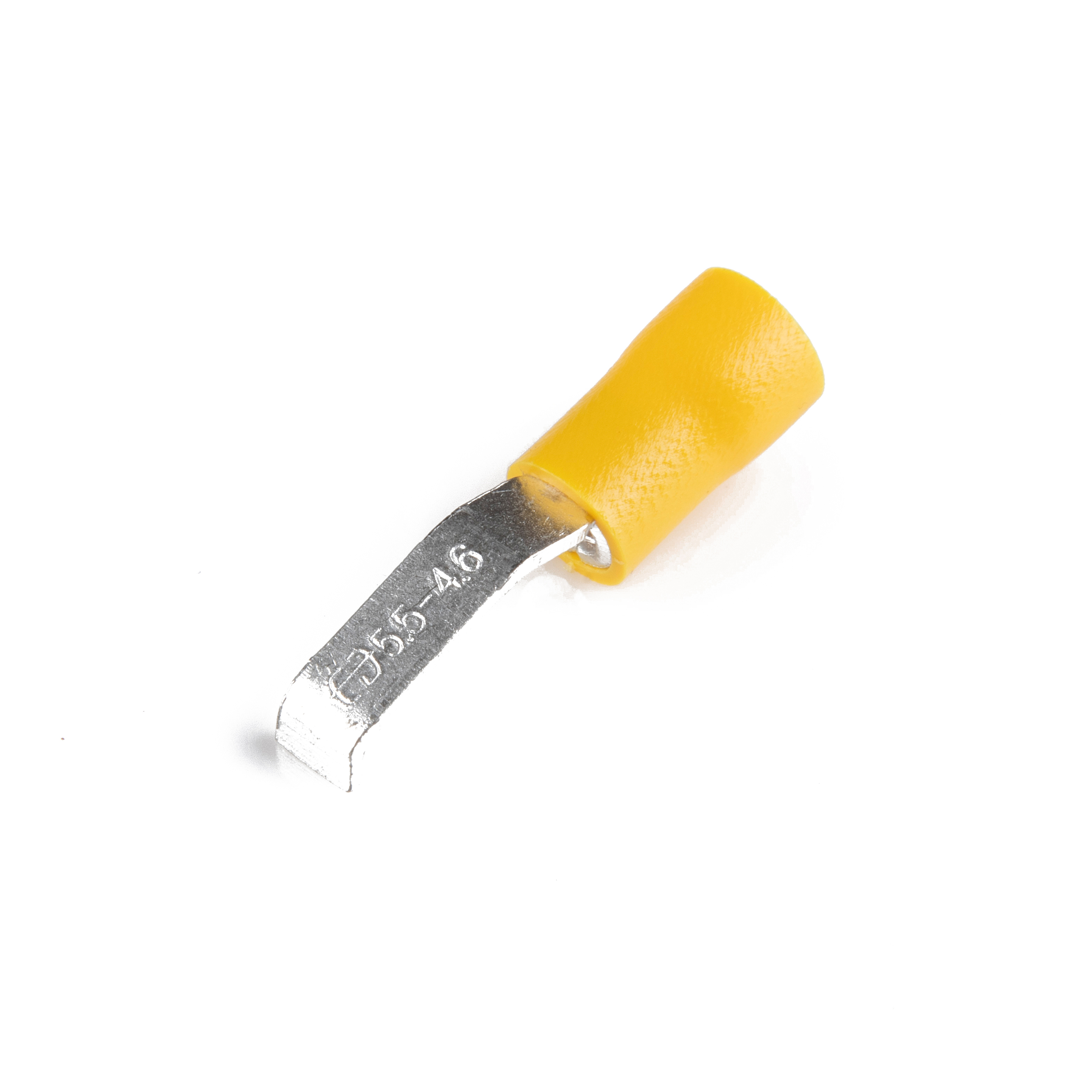

LBD 5.5-3 29.3 3.0 16.8 6.7 13.0 4-6 12-10 24 1.0 Yellow
LBD 5.5-4.6 29.3 4.6 16.8 6.7 13.0 4-6 12-10 24 1.0
