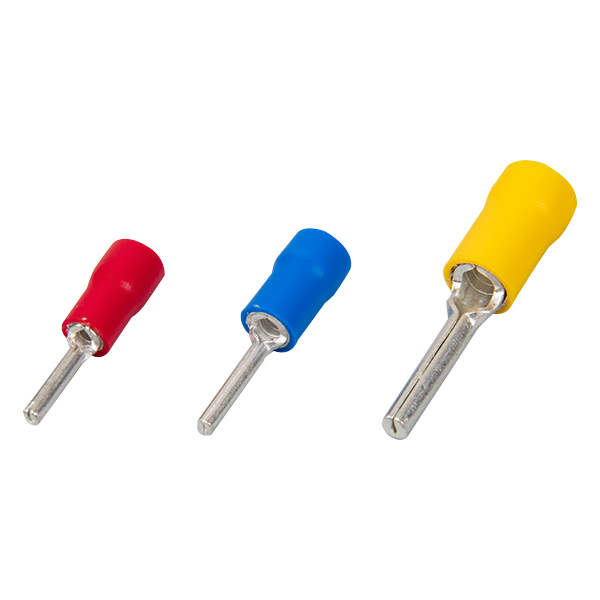

Pvc-Insulated Double Crimp Pin Terminal

Short Description:

Product Feature

●MaterialCopper

●InsulationPVC

●SurfaceTreatment:Tin-Plated/Brazedseam

Characteristics

●Fit all popular pin-types(European) terminal blocks

●Allow for quick wire connects and disconnects from components where set screws or clamps

●are used to make electrical contact with the wire

●The copper sleeve protection terminal and the cable are fully connected and reliable


Product Detail

FAQ

Product Tags

400像素19 副本

Insulated Double Crimp Pin Terminal

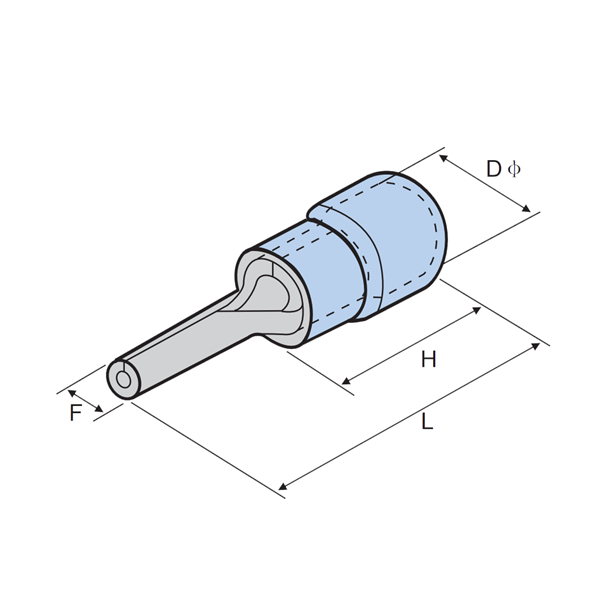

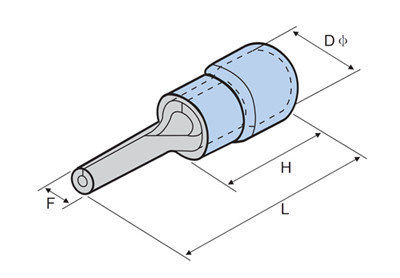

ITEM NO Dimension  (mm) Cable Size
A.W.G
Thick ness Imax Color
F L H D mm² A.W.G. mm A
PTD 1.25-9 1.9 19.0 10.0 4.3 0.5-1.5 22-16 0.75 19 Red
PTD 1.25-10 1.9 20.0 10.0 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-12 1.9 22.0 10.0 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-13 1.9 23.0 10.0 4.3 0.5-1.5 22-16 0.75 19
PTD 1.25-18 1.9 28.0 10.0 4.3 0.5-1.5 22-16 0.75 19
PTD 2-9 1.9 19.0 10.0 4.9 1.5-2.5 16-14 0.8 27 Blue
PTD 2-10 1.9 20.0 10.0 4.9 1.5-2.5 16-14 0.8 27
PTD 2-12 1.9 22.0 10.0 4.9 1.5-2.5 16-14 0.8 27
PTD 2-13 1.9 23.0 10.0 4.9 1.5-2.5 16-14 0.8 27
PTD 2-18 1.9 28.0 10.0 4.9 1.5-2.5 16-14 0.8 27
PTD 3.5-10 2.8 20.0 13.0 6.2 2.5-4 14-12 1.0 36 Black
PTD 3.5-13 2.8 25.0 13.0 6.2 2.5-4 14-12 1.0 36
PTD 5.5-13 2.8 25.5 13.0 6.7 4-6 12-10 1.0 48 Yellow
PTD 5.5-18 2.8 30.5 13.0 6.7 4-6 12-10 1.0 48
