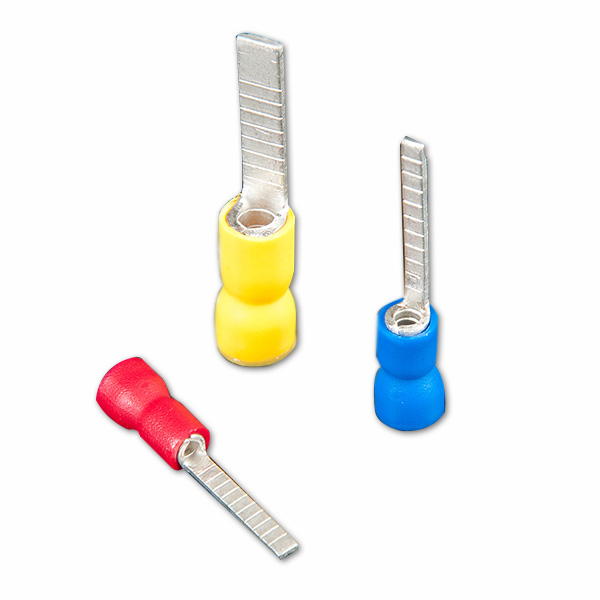

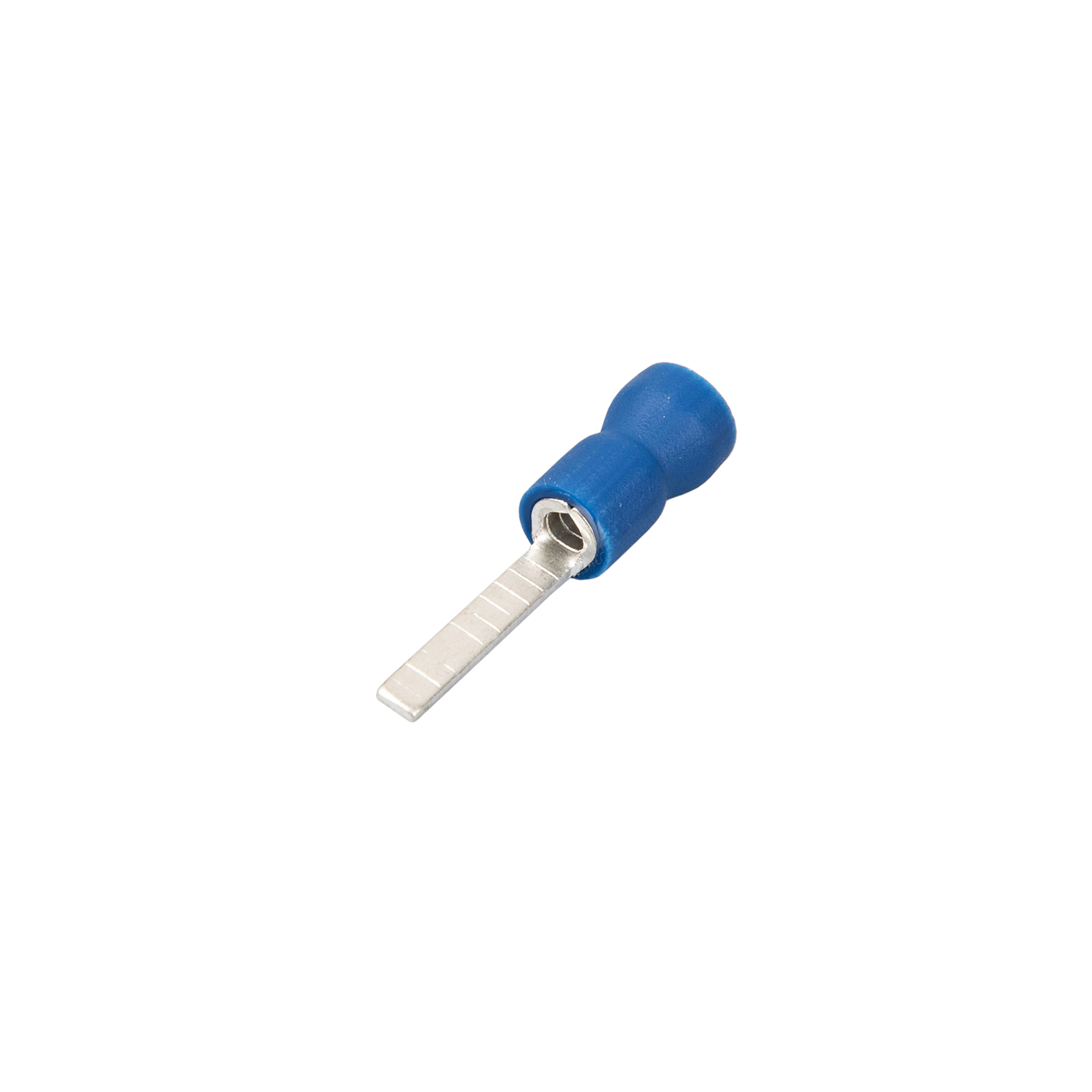

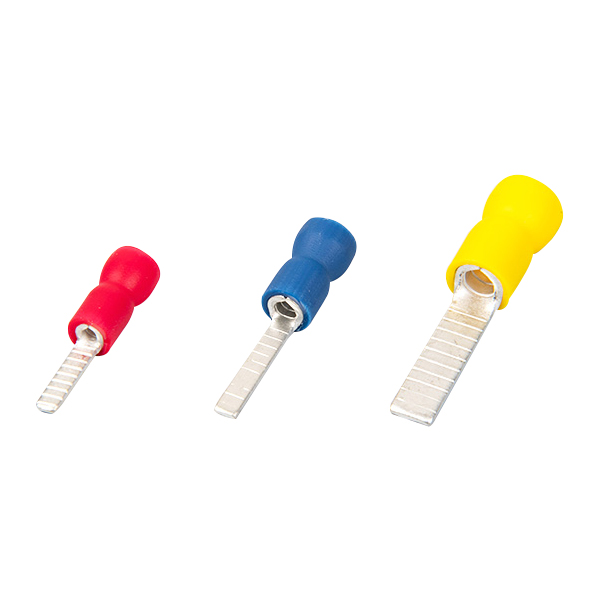

Pvc-Insulated Easy Entry Blade Terminal

Short Description:

Product Feature

●Material: Copper

●InsulationPVC

●SurfaceTreatment:Tin-Plated/Brazedseam

Characteristics

●Heat resistant:-10~75℃

●Allow for quick wire connects and disconnects from components where set screws are used to make electrical contact with the wire


Product Detail

FAQ

Product Tags

400像素12 副本

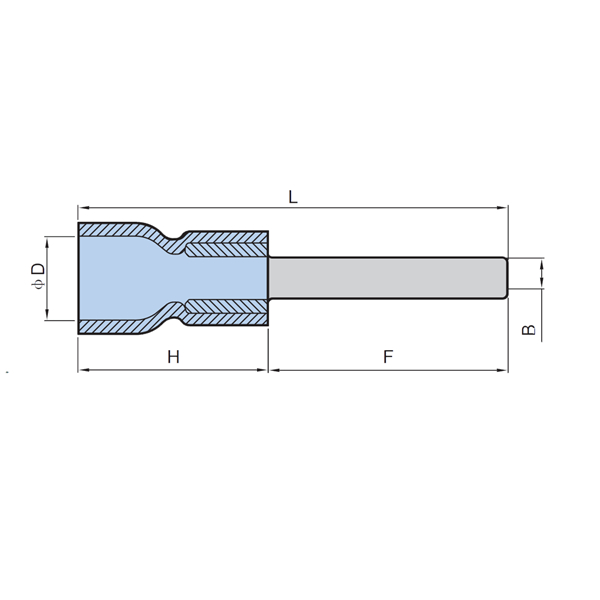

Insulated Easy Entry Blade Terminal
ITEM NO. Dimension  (mm) Cable Size Thickness I max Color
B L F H D mm² A.W.G. mm A
DBE 1.25-10 2.3 20.0 10.0 10.0 4.3 0.5-1.5 22-16 0.75 19 Red
DBE 1.25-11 2.3 21.0 11.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBE 1.25-14 2.3 24.0 14.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBE 1.25-18 2.3 28.0 18.0 10.0 4.3 0.5-1.5 22-16 0.75 19
DBE 2-10 2.3 19.0 9.0 10.0 4.9 1.5-2.5 16-14 0.8 27 Blue
DBE 2-14 2.3 24.0 14.0 10.0 4.9 1.5-2.5 16-14 0.8 27
DBE 2-18 2.3 28.0 18.0 10.0 4.9 1.5-2.5 16-14 0.8 27
DBE 5.5-10 2.8 22.5 10.0 13.0 5.6 4-6 12-10 1.0 48 Yellow
DBE 5.5-14 4.5 26.5 14.0 13.0 5.6 4-6 12-10 1.0 48
DBE 5.5-18 4.5 30.5 18.0 13.0 5.6 4-6 12-10 1.0 48
