Quick Splice Connecctor（Kw）

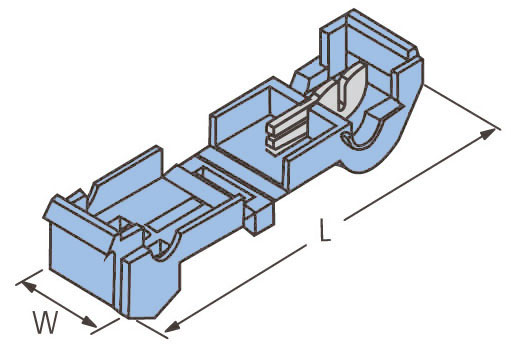

| Quick Splice Connector (KW) | |||||
| ITEM NO | Insulated : PP | Thickness : 0.4mm | Material : Brass | ||
| Dimension (mm) | Cable Size | color | |||
| L | W | A.W.G | mm² | ||
| KW -10 | 38.0 | 10.0 | 22-18 | 0.5-1.0 | Red |
| KW -11 | 38.0 | 10.0 | 18-14 | 1.0-2.5 | Blue |
| KW -12 | 38.0 | 10.0 | 12-10 | 4-6 | Yellow |
