Pvc-Insulated Bullet Male Disconnector

Short Description:

VINYL-INSULATED BULLET-MALE DISCONNECTORS

● Materials:          Brass

● Insulation:        PVC

● Finished:            Tin-Plated

●Characteristics:  Heat resistant: -10~75℃

● Flared-barrel entry for easy wire insertion


Product Detail

FAQ

Product Tags

Material: Brass

400像素34 副本

Insulated Bullet Disconnector
Material : Brass Insulated : Vinyl.Nylon

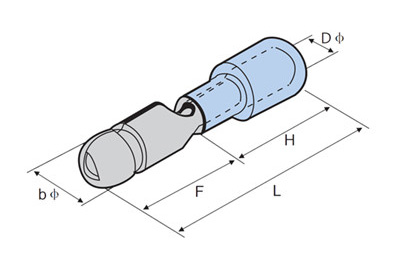

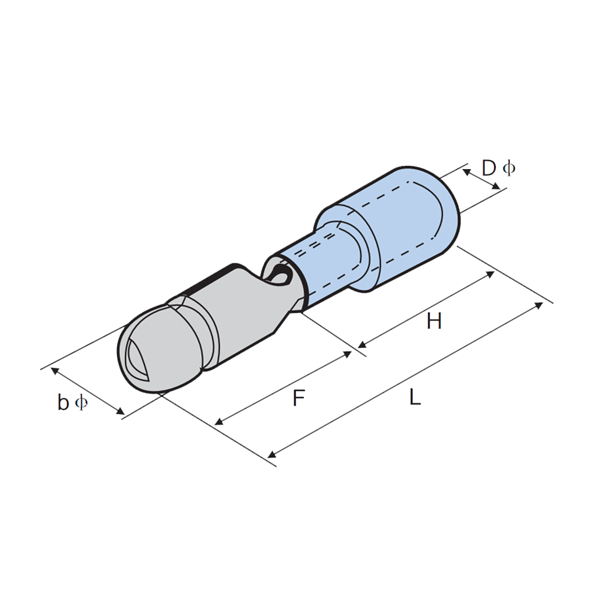

ITEM NO Dimension (mm) Cable Size Imax Thickness Color
b F D L H mm² A.W.G A mm
MPD 1.25-156 4.0 11.0 1.7 21.0 10.0 0.5-1.5 22-16 10 0.4 Red
MPD 2-156 4.0 11.0 2.3 21.0 10.0 1.5-2.5 16-14 15 0.4 Blue
MPD 2-195 5.0 11.0 2.3 21.0 10.0 1.5-2.5 16-14 15 0.4 Blue
MPD 5.5-195 5.0 12.0 3.4 25.0 13.0 4-6 12-10 24 0.4 Yellow
