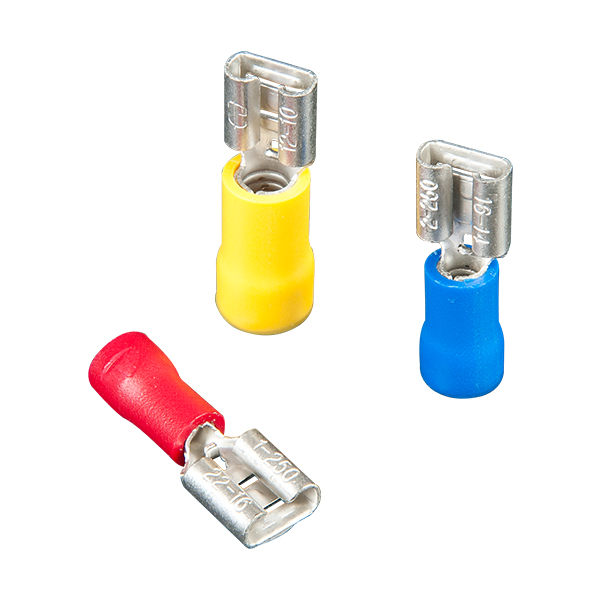

Pvc-Insulated Femae Disconnector

Short Description:

Product Feature

●MaterialBrass

●Insulation PVC

●Surface Treatment:Tin-Plated

Characteristics

●Heat resistant:-10~75℃

●Flared-barrel entry for easy wire insertion


Product Detail

FAQ

Product Tags

400像素33 副本

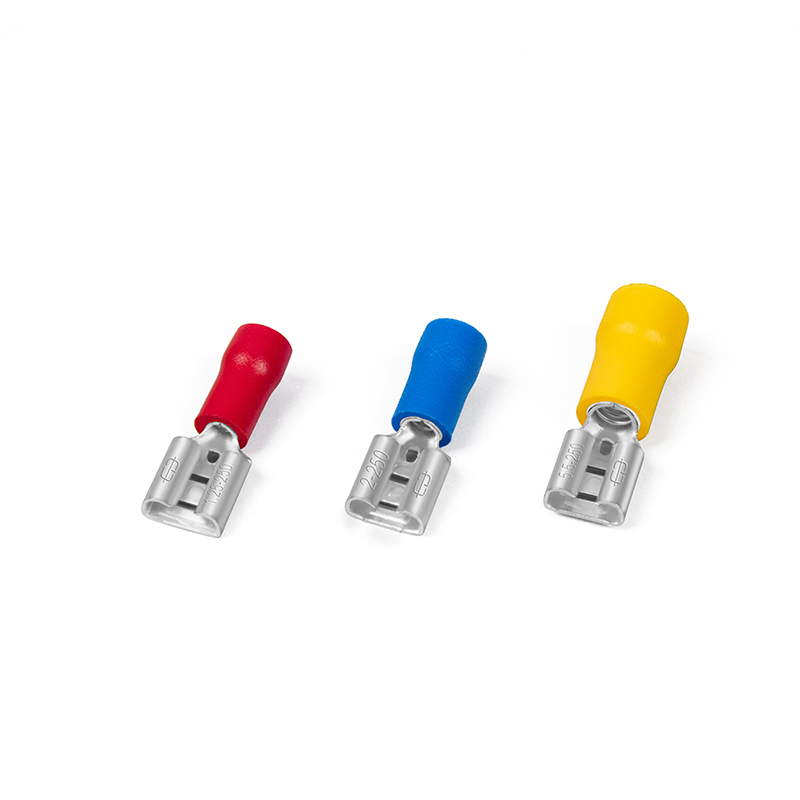

Insulated Female Disconnector
Insulating material : Vinyl, Nylon Material : Brass
Cable size: 0.5-1.5mm’ A.W.G. 22-16 Imax =10A Red

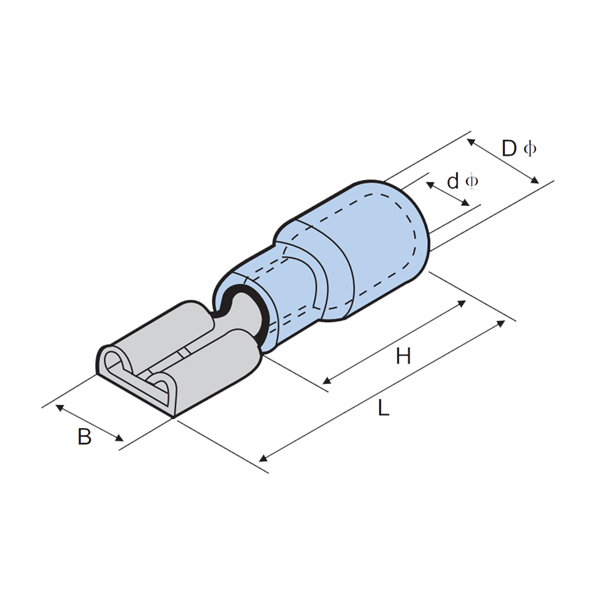

ITEM NO Nema Tab (mm) Thickness Dimension (mm)
mm B D d L H
FDD 1.25-110(5) 0.5 * 2.8 0.3 3.8 3.8 1.7 19.0 10.0
FDD 1.25-110(8) 0.8 * 2.8 0.3 3.8 3.8 1.7 19.0 10.0
FDD 1.25-187(5) 0.5 * 4.75 0.35 5.6 3.8 1.7 19.0 10.0
FDD 1.25-187(8) 0.8 * 4.75 0.35 5.6 3.8 1.7 19.0 10.0
FDD 1.25-205 0.5 * 52 0.35 6.5 3.8 1.7 20.0 10.0
FDD 1.25-250 0.8 * 6.35 0.4 7.4 3.8 1.7 21.0 10.0
Cable size: 1.5-2.5mm’ A.W.G. 16-14 Imax =10A Blue
FDD 2-110(5) 0.5 * 2.8 0.3 3.8 4.3 2.3 19.0 10.0
FDD 2-110(8) 0.8 * 2.8 0.3 3.8 4.3 2.3 19.0 10.0
FDD 2-187(5) 0.5 * 4.75 0.35 5.6 4.3 2.3 19.0 10.0
FDD 2-187(8) 0.8 * 4.75 0.35 5.6 4.3 2.3 19.0 10.0
FDD 2-205 0.5 * 5.2 0.35 6.5 4.3 2.3 20.0 10.0
FDD 2-250 0.8 * 6.35 0.4 7.4 4.3 2.3 21.0 10.0
FDD 2-312 0.8 * 8.0 0.4 9.0 4.3 2.3 23.0 10.0
Cable size: 4~6mm’ A.W.G. 12-10 Imax =24A Yellow
FDD 5.5-250 0.8 * 6.35 0.4 7.4 5.7 3.4 25.0 13.0
FDD 5.5-375 0.8 * 9.5 0.5 10.9 5.7 3.4 29.6 13.0
