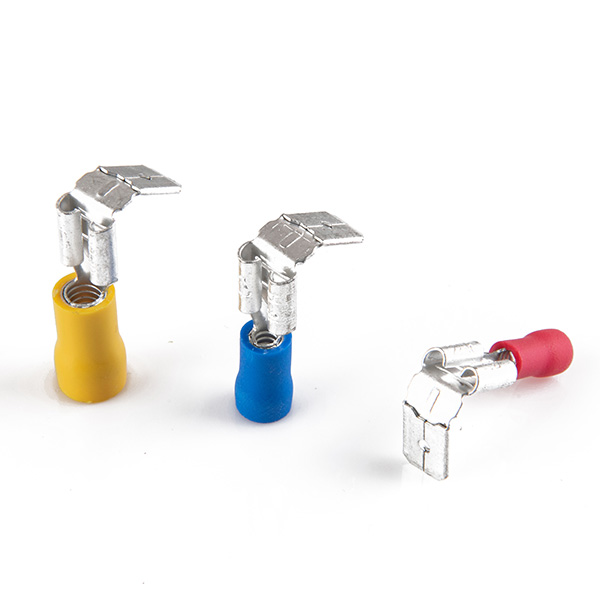

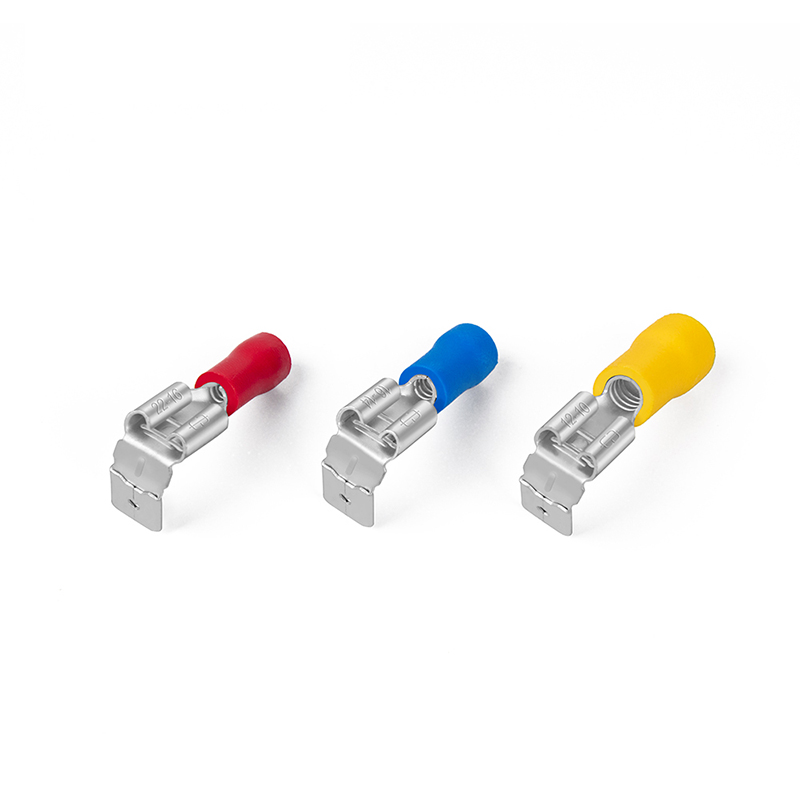

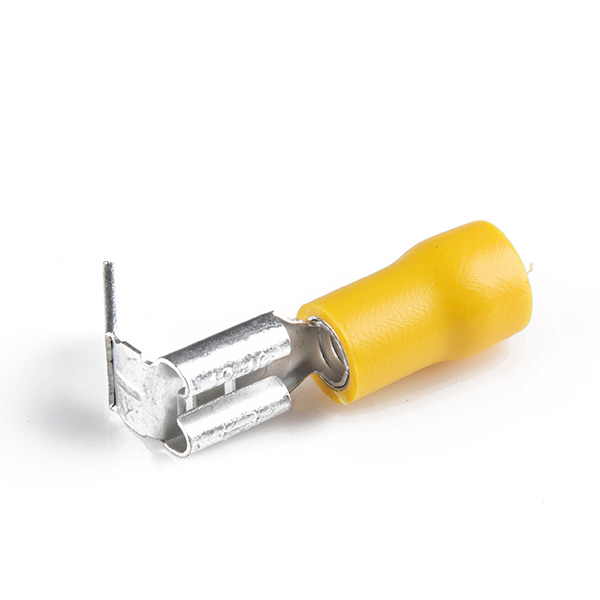

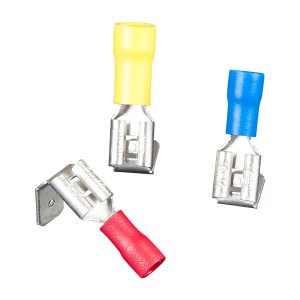

Pvc-Insulated Female & Male Disconnector

Short Description:

Product Feature

●MaterialBrass

●Insulation PVC

●Surface Treatment:Tin-Plated

Characteristics

●Heat resistant:-10~75℃

●Design of multi mating structure to be used easy


Product Detail

FAQ

Product Tags

400像素30 副本

Insulated  Piggy Back Disconnector
Material : Brass Insulated : Vinyl.Nylon

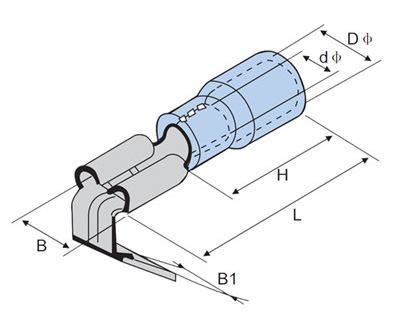

ITEM NO Dimension (mm) Cable Size Imax Nema Tab Color
d B B1 D L mm² A.W.G A
PBDV 1.25-250 1.7 7.4 6.35 3.8 21.5 0.5-1.5 22-16 10 0.8*6.35 Red
PBDV 2-250 2.3 7.4 6.35 4.3 21.5 1.5-2.5 16-14 15 0.8*6.35 Blue
PBDV 5.5-250 3.4 7.4 6.35 5.7 25.0 4-6 12-10 24 0.8*6.35 Yellow
