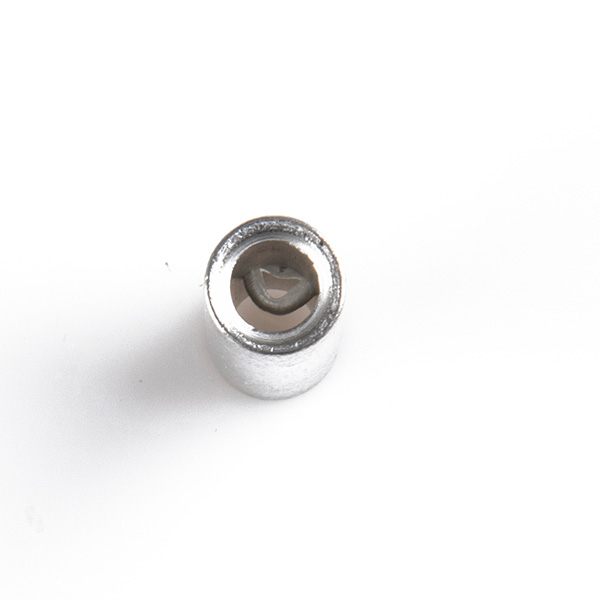

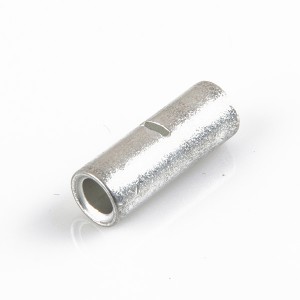

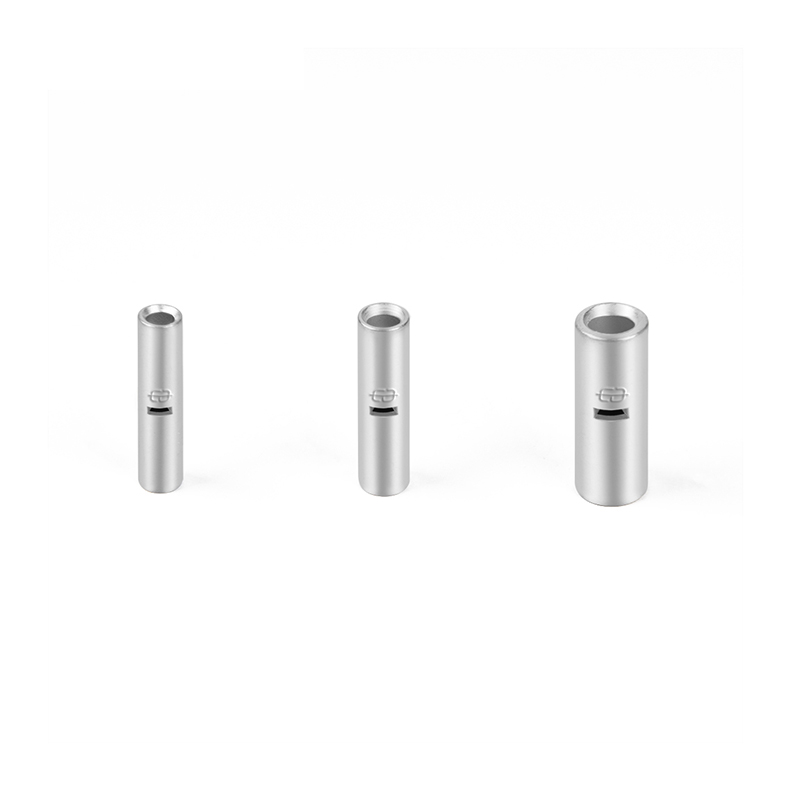

Non-Insulated Butt Splice Connector(Seamless)
| Non-Insulated Butt Connector | |||||

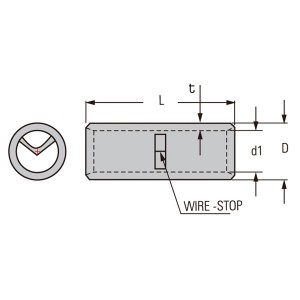

| ITEM NO. | Dimension (mm) | Cable Size | |||
| D | d | L | A.W.G | mm² | |
| BN 1.25 | 3.3 | 1.7 | 15.0 | 22-16 | 0.5-1.5 |
| BN 2 | 4.0 | 2.3 | 15.0 | 16-14 | 1.5-2.5 |
| BN 3.5 | 5.0 | 3.0 | 15.0 | 14-12 | 2.5-4 |
| BN 5.5 | 5.5 | 3.4 | 15.0 | 12-10 | 4-6 |
| BN 8 | 7.1 | 4.5 | 21.0 | 8 | 10 |
| BN 14 | 9.0 | 5.8 | 26.0 | 6 | 16 |
| BN 22 | 11.4 | 7.7 | 39.0 | 4 | 25 |
| BN 38 | 13.3 | 9.4 | 32.0 | 2 | 35 |
| BN 60 | 15.4 | 11.4 | 36.0 | 1/0 | 50 |
| BN 70 | 17.5 | 13.3 | 37.0 | 2/0 | 70 |
| BN 80 | 19.4 | 14.5 | 38.0 | 3/0 | 95 |
| BN 100 | 22.0 | 16.4 | 38.0 | 4/0 | 120 |
| BN 150 | 26.5 | 19.5 | 54.0 | 250-300 | 150 |
| BN 180 | 28.5 | 21.0 | 57.0 | 300-350 | 185 |
| BN 200 | 32.5 | 24.0 | 63.0 | 400 | 240 |
| BN 325 | 37.0 | 28.0 | 72.0 | 500-600 | 300 |
