Easy Entry Vinyl Insulated Spade Terminal

Product Feature
Conductor: Copper
Insulation: PVC
Finished: Tin-Plated/ Brazed seam

Characteristics
Heat resistant: -10~75℃
Terminals can be installed and removed without completely removing the mounting screws
Flared insulation for easy cable insertion
According to UL486 requirements

Introduction
The Easy Entry Vinyl Insulated Spade Terminals are designed to meet the needs of both professionals and DIY enthusiasts, offering exceptional performance, ease of use, and cost-effectiveness.

Durable Construction
Crafted from premium copper material, these Easy Entry Spade Terminals ensure long-lasting durability and  electrical conductivity. The terminals are available in multiple color options — red, blue, black, and yellow — allowing for easy identification and suitability for various applications. Whether you’re working on automotive, electrical, or industrial projects, these terminals are built to withstand the test of time and deliver reliable connections.

Comprehensive Certifications
Our Easy Entry Spade Terminals meet stringent international safety and environmental standards, including CE, RoHS, and UL certifications. This means that they comply with global regulations, offering you peace of mind and assurance that you’re using a safe, high-quality product. You can trust CDDQLJ terminals to provide reliable performance while also contributing to environmentally responsible practices.

Easy Installation
One of the standout features of our terminals is the easy-entry design. This innovative feature ensures that the terminal can be quickly and effortlessly crimped, saving you valuable time during installation. The easy-entry design minimizes effort and maximizes productivity, making these terminals an ideal choice for those who need to get the job done efficiently without sacrificing quality.

Competitive Pricing
At CDDQLJ, we understand the importance of both quality and affordability. Our Easy Entry Vinyl Insulated Spade Terminals come at a competitive price, and to further demonstrate our confidence in the product, we offer a “free sample” policy. You can try out the terminals before committing to a purchase, making it easier for you to see the value of our product firsthand.

Choose CDDQLJ for your electrical connection needs — reliable, efficient, and affordable.

CONTACT US
01Application 02Introduction 03Inquiry

Cable size: 0.5~1.5mm²(AW.G.22~16)  Max current: Imax=19A  Material: copper  Insulating material: PVC  Thickness: 0.75mm

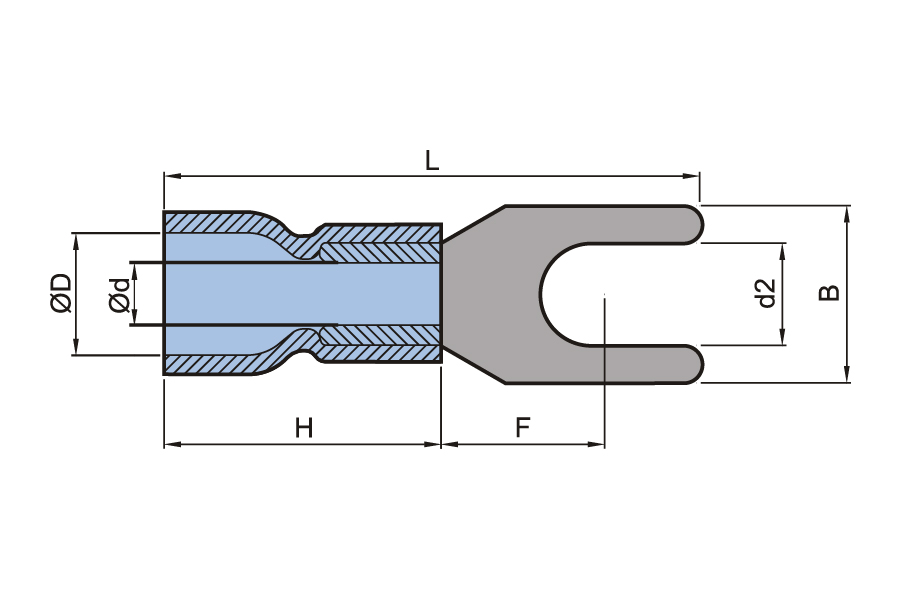

ITEM NO

USA screw

Screw dia.

d2(mm)

Dimension(mm)

Color

B

L

F

H

ΦD

Φd

SE 1.25-3

#4

3.2

5.7

21.8

6.5

11.0

4.3

1.7

Red

SE 1.25-3.5S

#6

3.7

5.7

22.0

6.5

SE1.25-3.5L

#6

3.7

6.3

22.0

6.5

SE 1.25-4S

#8

4.3

6.4

22.0

6.5

SE 1.25-4M

#8

4.3

7.2

22.0

6.5

SE 1.25-4L

#8

4.3

7.9

22.0

6.0

SE 1.25-5S

#10

5.3

8.1

22.0

6.3

SE 1.25-5L

#10

5.3

9.4

22.0

6.3

SE 1.25-6S

1/4

6.4

9.5

22.0

6.5

SE 1.25-6L

1/4

6.4

12.0

28.2

11.0



Cable size: 1.5~2.5mm²(A.W.G.16~14)  Max current: Imax=27A  Material: copper Insulating materiat: PVC  Thickness: 0.8mm



ITEM NO

USA screw

Screw dia.

d2(mm)

Dimension(mm)

Color

B

L

F

H

ΦD

Φd

SE 2-3

#4

3.2

5.7

22.0

6.5

11.0

4.9

2.3

Blue

SE 2-3.5S

#6

3.7

5.7

22.0

6.5

SE 2-3.5L

#6

3.7

6.3

22.0

6.3

SE 2-4S

#8

4.3

6.4

22.0

6.3

SE 2-4M

#8

4.3

7.2

22.0

6.5

SE 2-4L

#8

4.3

7.9

22.0

6.0

SE 2-5S

#10

5.3

8.1

22.0

6.5

SE 2-5L

#10

5.3

9.4

22.0

6.3

SE 2-6S

1/4

6.4

9.5

22.0

6.3

SE 2-6L

1/4

6.4

12.0

28.0

11.0



Cable size: 2.5~4mm²(A.W.G.14~12)  Max current: Imax=37A  Material: copper  Insulating material: PVC  Thickness: 1.0mm



ITEM NO

USA screw

Screw dia.

d2(mm)

Dimension(mm)

Color

B

L

F

H

ΦD

Φd

SE 3.5-3

#4

3.2

5.7

26.2

7.0

14.0

5.8

3.0

Black

SE 3.5-4

#8

4.3

8.0

26.2

7.5

SE 3.5-5

#10

5.3

8.0

26.2

7.0

SE 3.5-6

1/4

6.4

12.0

29.4

9.4



Cable size: 4～6mm²(A.W.G.12~10) Max current: Imax=48A Material: copper  Insulating material: PVC  Thickness: 1.0mm



ITEM NO

USA screw

Screw dia.

d2(mm)

Dimension(mm)

Color

B

L

F

H

ΦD

Φd

SE 5.5-3.5

#6

3.7

7.2

24.8

7.5

14.0

6.3

3.4

Yellow

SE 5.5-4S

#8

4.3

8.3

26.5

7.5

SE 5.5-4L

#8

4.3

9.0

26.5

7.0

SE 5.5-5

#10

5.3

9.0

26.5

7.5

SE 5.5-6S

1/4

6.4

9.0

26.5

7.0

SE 5.5-6L

1/4

6.4

12.0

32.5

12.0

SE 5.5-8

5/16

8.4

14.0

31.5

11.0
