Quick Splice Connector Factory

Our Quick Splice Connector is a high-performance, user-friendly electrical connection solution designed to streamline the process of wire splicing without the need for specialized tools. This connector is ideal for applications where quick, reliable, and secure wire connections are required.

1. Reliable and Secure Connection
Our Quick Splice Connectors are engineered to provide a secure, stable electrical connection that ensures optimal performance. The connector features an internal locking mechanism that firmly holds the wires in place, preventing accidental disconnections and ensuring a continuous, low-resistance electrical path.

Enhanced Contact Integrity: The connector's internal design ensures nice contact between wires, minimizing the risk of electrical faults, such as arcing or intermittent connections.
High-Quality Materials: Constructed from durable materials such as copper and high-grade plastic, the Quick Splice Connector is resistant to corrosion, wear, and extreme temperatures, ensuring that the connection remains stable over time, even in challenging environments.

2. Versatility Across Applications
Our Quick Splice Connector is a versatile solution suitable for a broad range of applications. Whether you're working with thin gauge wires for consumer electronics or thicker cables for industrial machinery, our connectors can accommodate a variety of wire sizes and types.

Wide Range of Wire Sizes: Our connectors are available in various sizes to accommodate different wire gauges, ensuring that users can splice a wide range of wires together efficiently.
Compatible with Different Insulation Types: The Quick Splice Connector is designed to work with various types of wire insulation, making it suitable for use in different industries and environments.

3. Enhanced Safety
Our Quick Splice Connector also prioritizes safety. The robust locking mechanism and secure wire insertion ensure that there is no risk of accidental disconnections, which could lead to electrical shorts, fires, or other hazards.

Reliable Insulation: The insulating materials used in the Quick Splice Connector prevent electrical shorts and reduce the risk of exposure to live wires, making it a safer choice compared to traditional splicing methods.
Secure Locking Mechanism: The connector ensures that wires remain in place even under vibration or movement, which is especially important in applications such as automotive wiring or industrial machinery.

4. Applications
The versatility and ease of use of our Quick Splice Connector make it suitable for a wide range of applications, across various industries. Here are some of the key sectors where these connectors are commonly used:

Automotive Industry: Quick Splice Connectors are ideal for quickly connecting wires in automotive electrical systems, such as lighting, sensors, and ignition systems. They allow for quick repairs and modifications without removing or disassembling complex wiring harnesses.
Industrial Equipment: In industrial settings, quick wire splicing is often necessary for routine maintenance, troubleshooting, and repair. Our Quick Splice Connector allows technicians to make fast, secure electrical connections without the need for tools, helping to minimize downtime.
Consumer Electronics: Whether you are working with home appliances, power tools, or other electronic devices, our connectors offer a simple and safe solution for connecting wires without the need for soldering or crimping.
Telecommunications: The Quick Splice Connector is also widely used in the telecommunications industry for connecting wiring in data centers, networks, and telecommunications equipment, where fast and reliable wire connections are essential.

Yueqing Chaodao Electrical Connection Co., Ltd.

Yueqing Chaodao Electrical Connection Co., Ltd. is a China Quick Splice Connector Manufacturer and Sale Quick Splice Connector Factory. It is a company specializing in the design, development and production of electrical terminal blocks and related accessories. The company refers to the technical standards and quality requirements of advanced industrial countries, takes customer needs as the center, takes safety, environmental protection, high efficiency and stability as the concept, regards quality as life, and innovates in science and technology to provide high-quality products and supporting services for various industries such as electricity, machinery, industry, aviation, construction, communication equipment, automobile manufacturing, and home appliances.

News
Message Feedback
Quick Splice Connector Industry Knowledge Extension

What Are the Characteristics of a Quick Splice Connector?

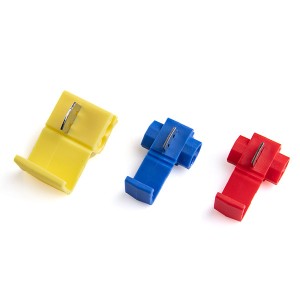

A quick splice connector allows two wires to be joined without stripping, twisting, or soldering. It contains a plastic body and a metal insert that pierces wire insulation to establish electrical contact. Once closed, the connection remains firm and insulated, saving time and effort.

Key Characteristics

Ease of Use: No need for wire stripping or special tools.

Material Composition: Usually made from flame-retardant plastic with a conductive metal blade.

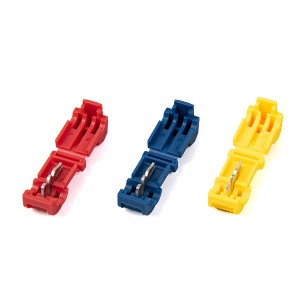

Versatility: Works with different wire gauges, often color-coded for quick identification (e.g., red, blue, yellow).

Safety: Insulated housing prevents electrical shock and short circuits.

Speed: Enables fast wiring during repairs, automotive installations, or lighting projects.

Reliability: Suitable for low- to moderate-current circuits when properly installed.

Use Case

When adding new LED lights in a car, a technician can use a quick splice connector to tap into an existing wire without cutting it completely. This saves time and avoids damaging the original wiring harness.

Electrical Splice Connectors: How Do I Choose One?

Selecting the right electrical splice connector depends on several technical and environmental factors. The first step is understanding the application. Is the connection permanent or temporary? For quick repairs, a splice connector is convenient. For long-term installations, crimp or solder connectors might be better suited.

Wire gauge compatibility is another crucial aspect. Connectors are typically designed for specific wire ranges (e.g., 22–10 AWG). Using the wrong size can poor contact or overheating. Many connectors are color-coded to simplify the selection process.

The material of both the connector and wire should also be considered. Copper or tin-plated terminals offer better conductivity and corrosion resistance. In harsh or outdoor environments, heat-shrink or waterproof connectors help prevent moisture ingress and oxidation.

Installation preferences can also guide the choice:

If you need speed and convenience, use a quick splice or push-fit connector.

For precision and durability, use crimp or solder connectors.

When connections must be removable, use terminal connectors such as bullet or spade types.

Choosing the correct connector involves balancing performance, safety, and installation efficiency.

Connector Type

Connection Method

Advantages

Ideal Use

Quick Splice

Clamp & close

Fast installation, no stripping

Auto wiring, testing circuits

Crimp

Compression

Strong mechanical bond

Industrial and automotive

Solder

Melted solder joint

conductivity

Electronics and fine wiring

Push-Fit

Insert wire only

Tool-free, reusable

Household wiring

Heat-Shrink

Crimp + heat

Moisture protection

Marine/outdoor

What Is a Quick Splice Wire Terminal Kit?

A quick splice wire terminal kit is a comprehensive set that includes different types of connectors, terminals, and sometimes installation tools. It is designed for users who regularly perform wiring repairs or modifications. Having multiple connectors in one kit saves time, ensures compatibility, and keeps tools organized for various wire sizes and applications.

Common Kit Contents

  • Quick splice connectors for fast tapping into wires.
  • T-tap connectors for branching circuits.
  • Butt connectors for end-to-end joins.
  • Spade and ring terminals for screw or bolt fastening.
  • Heat shrink sleeves for insulation and moisture protection.
  • Wire stripper or crimping tool for easy installation.

Benefits and Advantages

Incredibly Fast and Easy: The name says it all. They allow you to add a new circuit or device to an existing wire in seconds, eliminating the need to strip insulation or solder.

No Wire Cutting Required: This is the biggest advantage. You don't have to sever the original wire, which maintains the integrity of the main circuit and avoids potential points of failure from re-splicing.

Ideal for Simple, Low-Current Applications: Perfect for adding accessories like LED lights, car stereo amplifiers, sensors, or relays to existing wiring harnesses.

Significant Drawbacks and Warnings

Despite their convenience, quick splices are often frowned upon by professional electricians and automotive technicians for critical applications due to several major risks:

Poor Reliability and Corrosion: The connection point is not sealed. Moisture and salt can get inside, leading to corrosion, which increases electrical resistance.

Potential for High Resistance and Heat: A corroded or loose connection has high resistance. According to Ohm's Law (V=IR), this causes voltage drop and generates heat at the connection point, which can be a fire hazard under high electrical load.

Vibration Failure: The "pinching" connection can become loose over time due to vibration, especially in vehicles, leading to an intermittent connection or complete failure.

Damage to the Main Wire: The sharp teeth permanently damage the insulation of the original wire. Even if you remove the tap, the main wire now has a compromised section that should be properly insulated.

Practices for Use

If you choose to use a quick splice, follow these guidelines:

  • Use Sparingly: Only for low-current applications (e.g., signals, small LEDs, not for main power lines).
  • Choose the Correct Size: Using a connector that is too large or small will result in a poor connection.
  • Crimp Thoroughly: Use the proper tool and ensure the crimp is firm and secure.
  • Apply Secondary Protection: Seal the entire connector with electrical tape or, even better, a layer of liquid electrical tape or heat-shrink tubing to keep moisture out.
  • Inspect Periodically: Check the connection for signs of heat, corrosion, or looseness.

Professional Alternative: For a more reliable and permanent connection, the recommended method is to cut the wire and use a heat-shrink butt connector. This creates a sealed, gas-tight, and mechanically robust splice that is far superior for long-term durability and safety.
