What Are the Common Problems with Insulated Ferrule Terminals?

1. Improper Crimping

One of the common problems with insulated ferrule terminals is improper crimping. Crimping is the process of attaching the terminal to a wire, and it’s crucial for ensuring a solid electrical connection. If the crimping tool isn’t used correctly or if the wrong tool is chosen, the crimp may not be tight enough, poor conductivity or even a complete electrical failure. Similarly, over-crimping can damage the terminal or the wire, causing a short circuit or weakening the overall connection.

2. Terminal Insulation Damage

The insulation surrounding a ferrule terminal is designed to protect the connection and prevent short circuits. However, during installation or regular use, this insulation can sometimes be damaged. Overheating, excessive bending, or improper stripping of the wire can cause the insulation to crack, potentially exposing the wire and safety hazards such as electric shocks or fires.

3. Corrosion and Environmental Damage

Ferrule terminals, especially when used in outdoor or industrial settings, can be susceptible to corrosion. Exposure to moisture, harsh chemicals, or temperatures can degrade the materials, reduced effectiveness over time. Corrosion can also increased resistance at the connection point, which can cause overheating, sparking, or even electrical failure.

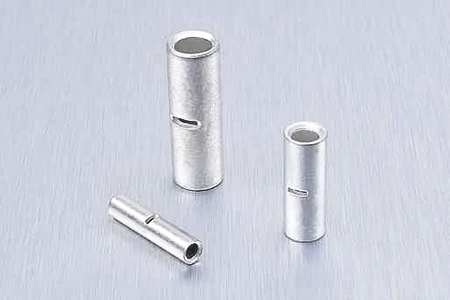

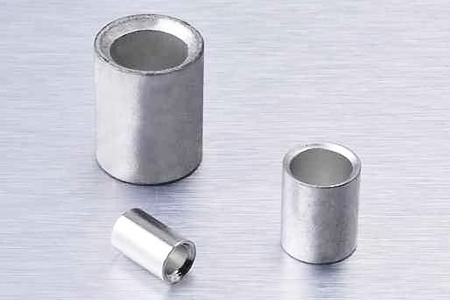

What are non-insulated terminals used for?

The Bare Essentials of a Robust Connection

While their insulated counterparts get more attention for safety, non-insulated terminals are fundamental workhorses in electrical and electronic applications where space is constrained, or a secondary insulating layer is already present. Their primary use lies in creating a durable, gas-tight, and highly conductive termination for stranded wires, which is then protected within an insulated environment.

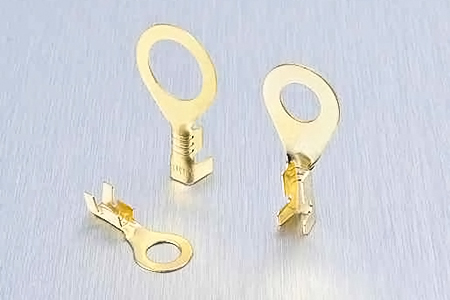

A classic application is within control panels and electrical enclosures. Once a non-insulated terminal, such as a ring or fork tongue, is crimped onto a wire, the entire assembly is often housed inside a protective terminal block. The terminal block provides the insulation and mechanical support, making a separate insulating sleeve on the terminal redundant. This allows for a more compact connection stack, which is crucial in densely packed panels. Another significant use is in conjunction with heat-shrink tubing. After a crimp is made on a non-insulated terminal, a piece of heat-shrink tubing is slid over the connection and heated. The tubing shrinks tightly, forming a sealed, insulated barrier that is often more robust and environmentally protected than a pre-insulated terminal's sleeve. This method is common in automotive, marine, and aerospace wiring, where protection from moisture, fuel, and vibration is paramount. Furthermore, non-insulated terminals are essential for creating custom wiring harnesses and are often preferred for high-vibration applications because a well-executed crimp provides mechanical strength.

How is the Crimp Terminal Connector?

The Anatomy of a Reliable Termination

The crimp terminal connector is a deceptively simple component whose quality and performance are defined by three key points: its structural design, the critical importance of the crimping process, and the materials from which it is constructed. Understanding these elements is essential for achieving a safe and long-lasting electrical connection.
