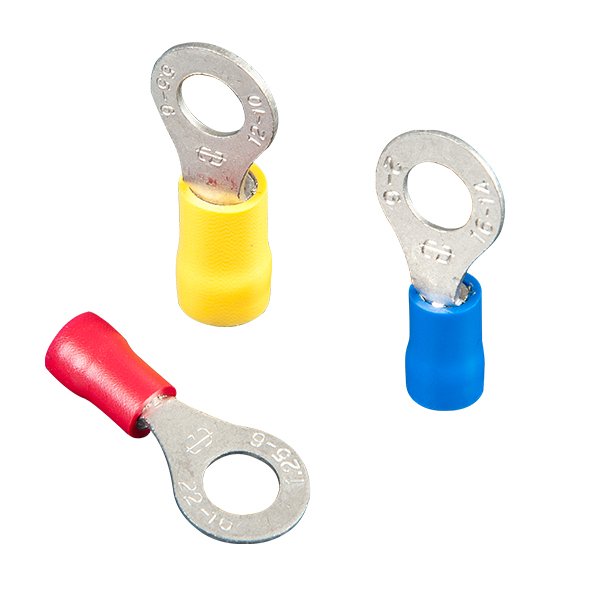

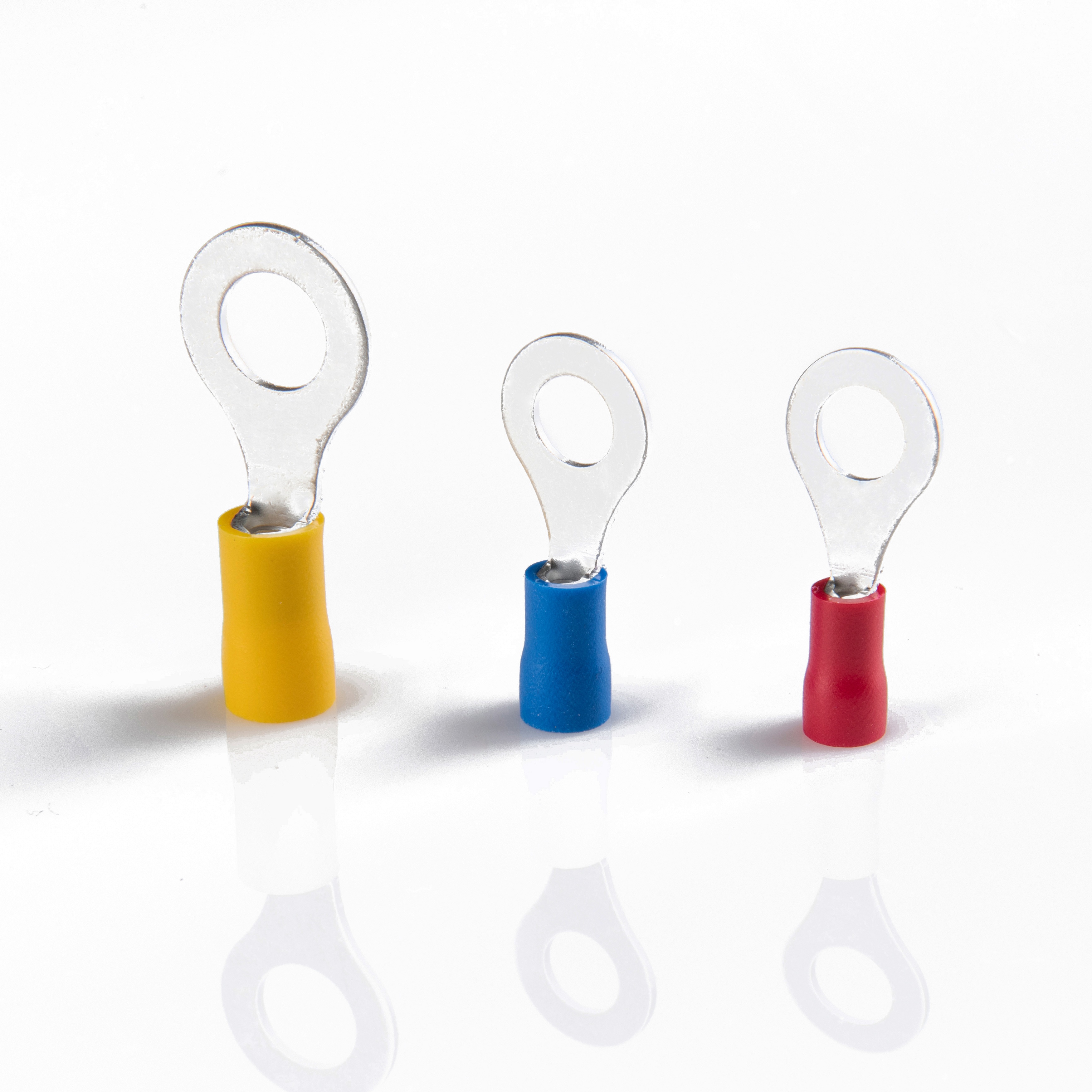

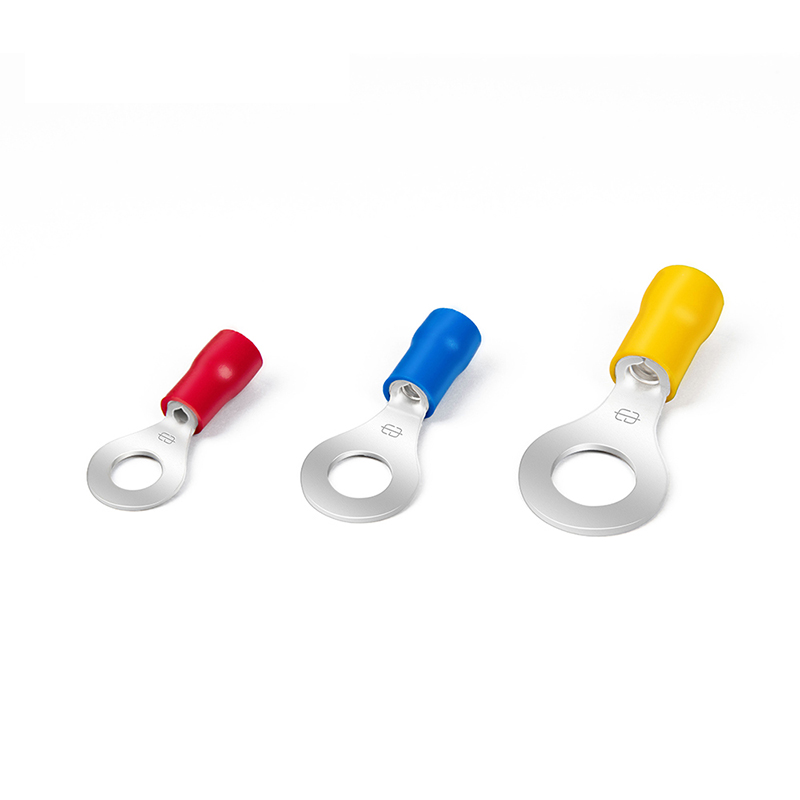

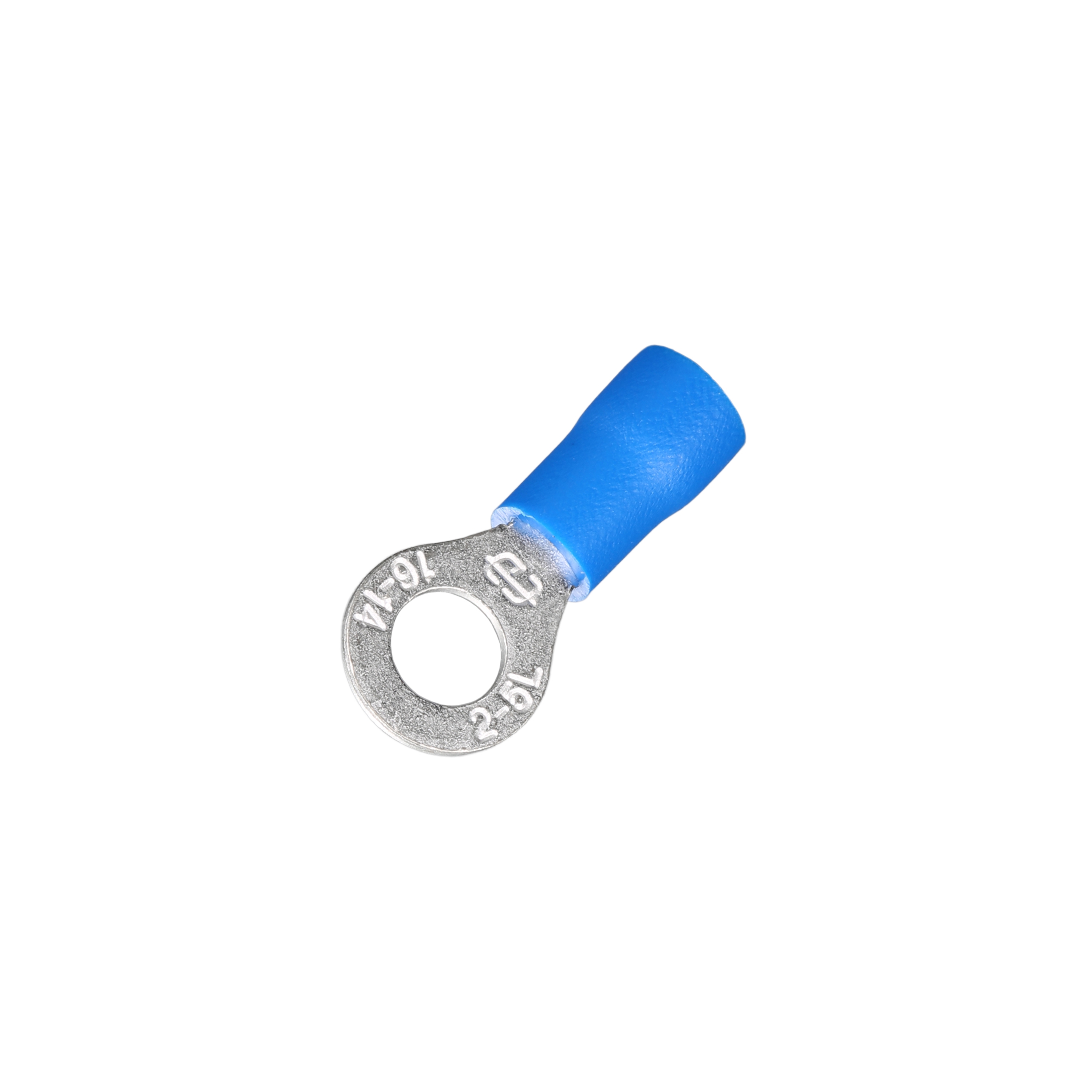

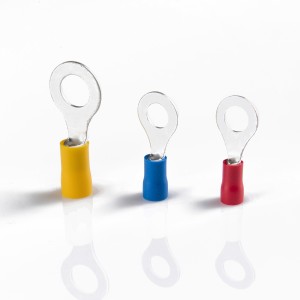

Pvc-Insulated Double Crimp Ring Terminal

Product Feature

●Material：Copper

●Insulation：PVC

●SurfaceTreatment：Tin-Plated/Brazedseam

Characteristics

●Fit all popular pin-types(European) terminal blocks

●Allow for quick wire connects and disconnects from components where set screws or clamps

●are used to make electrical contact with the wire

●The copper sleeve protection terminal and the cable are fully connected and reliable

Insulated Double Crimp Pin Terminal

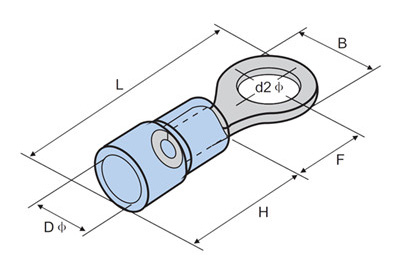

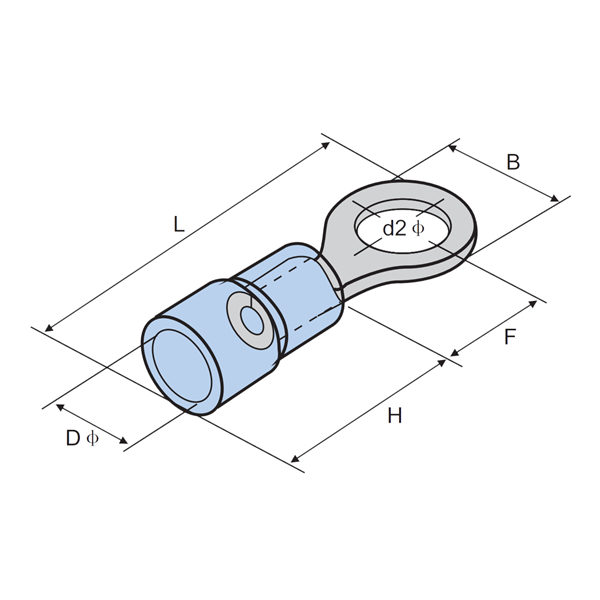

ITEM NO	Dimension (mm)				Cable Size A.W.G		Thick ness	Imax	Color
ITEM NO	F	L	H	D	mm²	A.W.G.	mm	A	Color
PTD 1.25-9	1.9	19.0	10.0	4.3	0.5-1.5	22-16	0.75	19	Red
PTD 1.25-10	1.9	20.0	10.0	4.3	0.5-1.5	22-16	0.75	19
PTD 1.25-12	1.9	22.0	10.0	4.3	0.5-1.5	22-16	0.75	19
PTD 1.25-13	1.9	23.0	10.0	4.3	0.5-1.5	22-16	0.75	19
PTD 1.25-18	1.9	28.0	10.0	4.3	0.5-1.5	22-16	0.75	19
PTD 2-9	1.9	19.0	10.0	4.9	1.5-2.5	16-14	0.8	27	Blue
PTD 2-10	1.9	20.0	10.0	4.9	1.5-2.5	16-14	0.8	27
PTD 2-12	1.9	22.0	10.0	4.9	1.5-2.5	16-14	0.8	27
PTD 2-13	1.9	23.0	10.0	4.9	1.5-2.5	16-14	0.8	27
PTD 2-18	1.9	28.0	10.0	4.9	1.5-2.5	16-14	0.8	27
PTD 3.5-10	2.8	20.0	13.0	6.2	2.5-4	14-12	1.0	36	Black
PTD 3.5-13	2.8	25.0	13.0	6.2	2.5-4	14-12	1.0	36	Black
PTD 5.5-13	2.8	25.5	13.0	6.7	4-6	12-10	1.0	48	Yellow
PTD 5.5-18	2.8	30.5	13.0	6.7	4-6	12-10	1.0	48	Yellow
