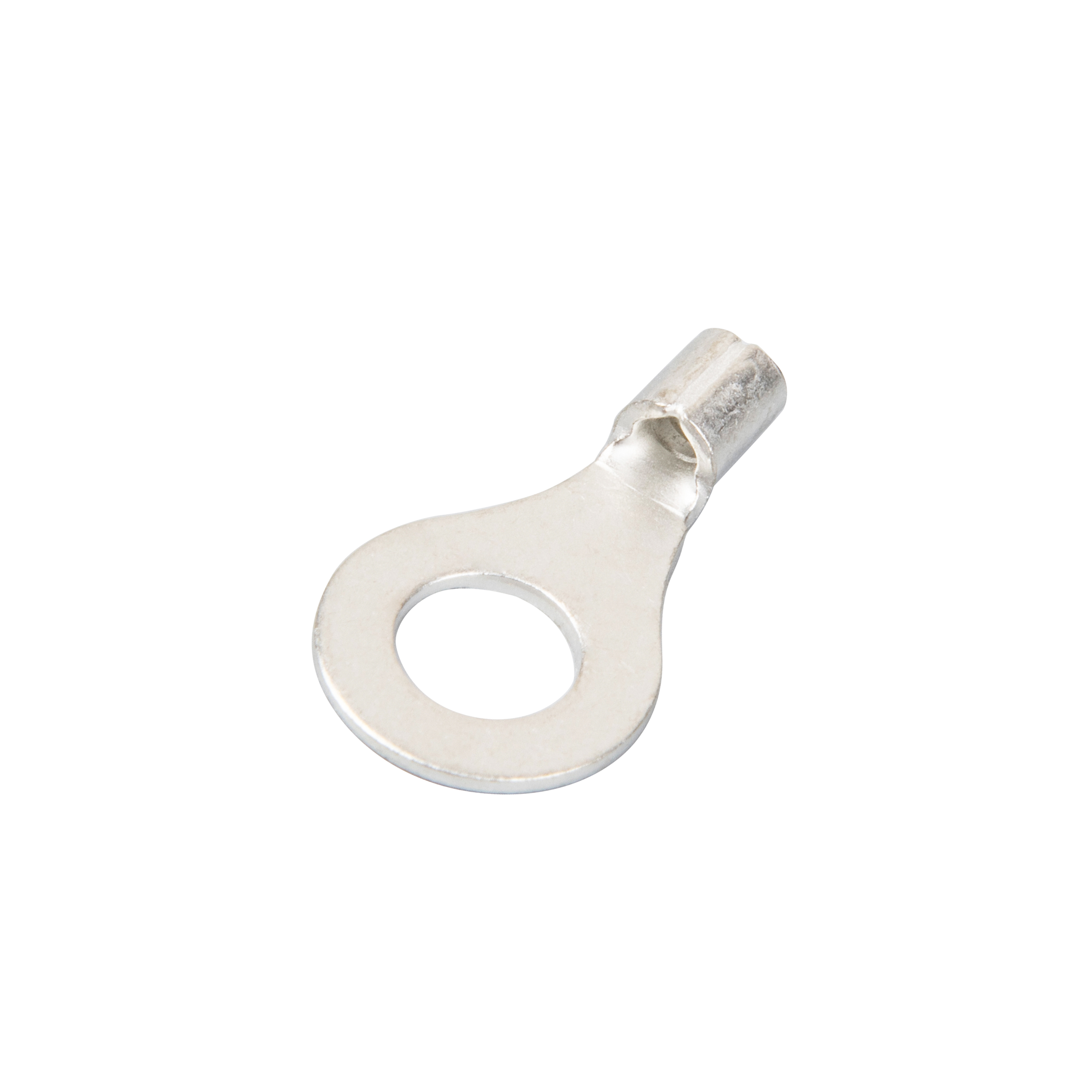

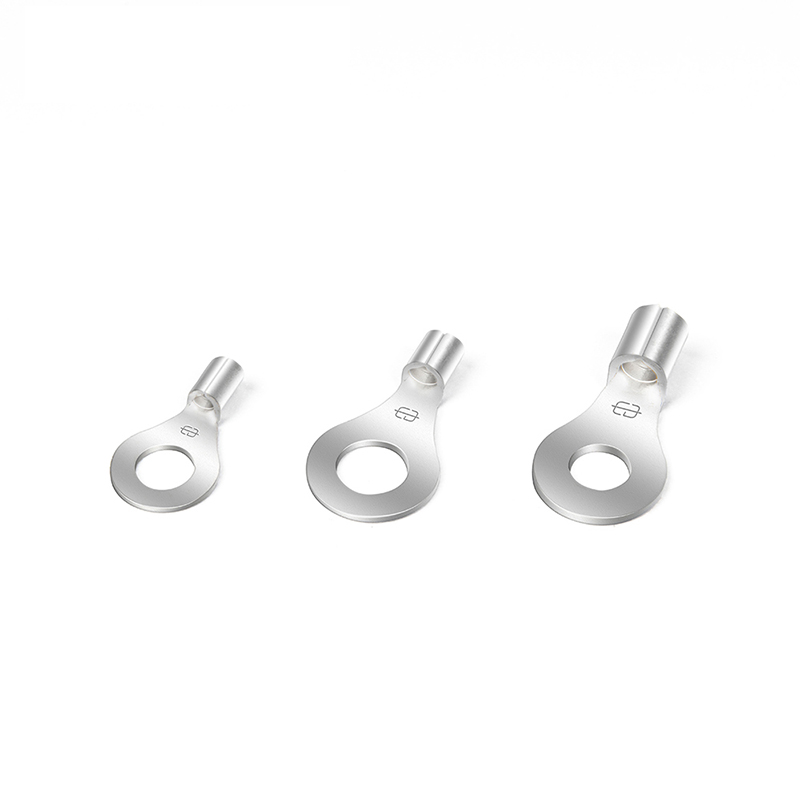

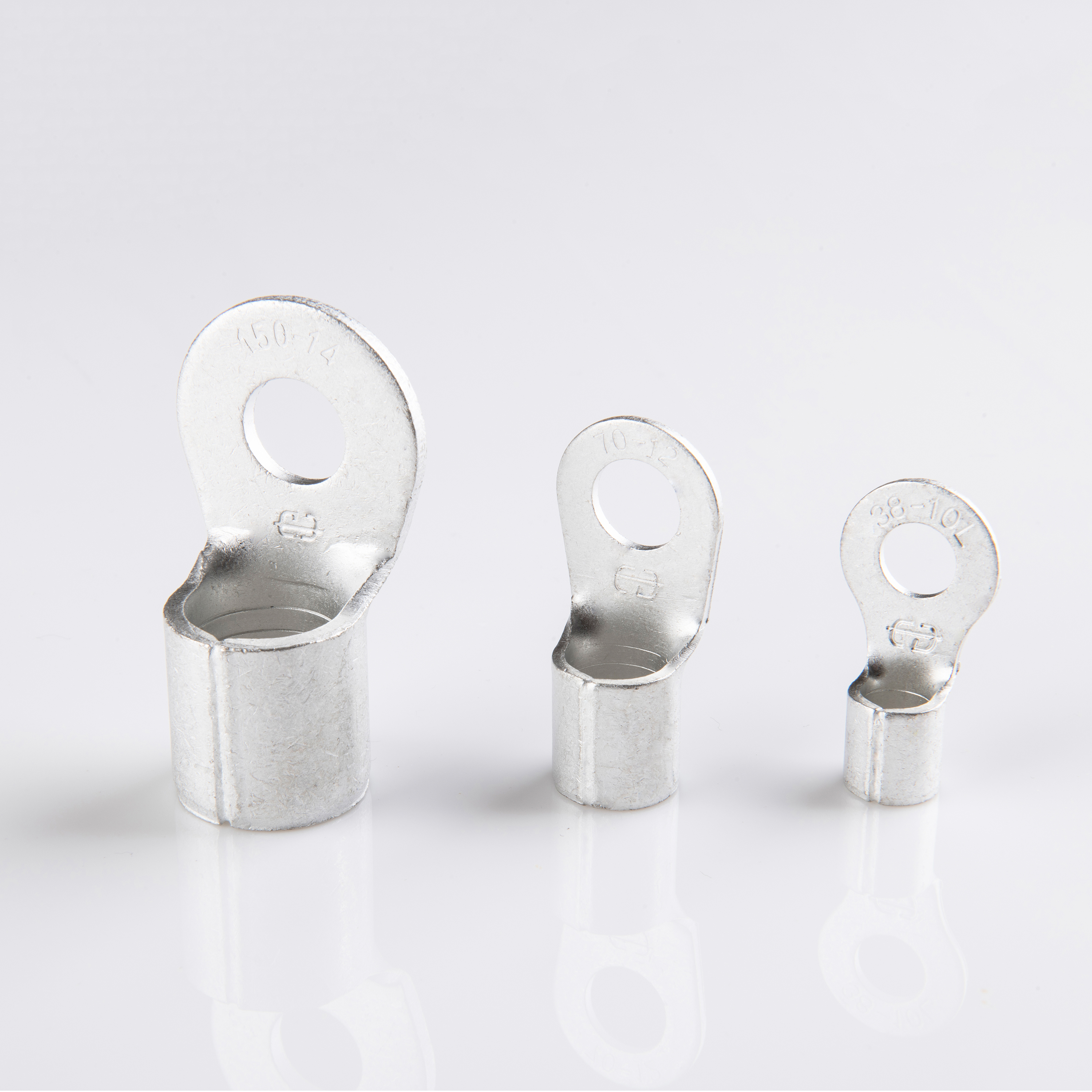

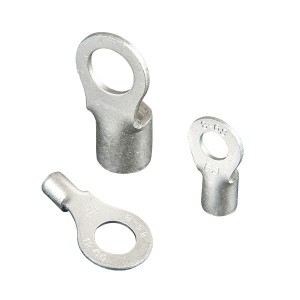

Non-Insulated Ring Terminal

Short Description:

Product Feature

●MaterialCopper

●InsulationPVC

●SurfaceTreatment:Tin-Plated/Brazedseam

Characteristics

●Fit all popular pin-types(European) terminal blocks

●Allow for quick wire connects and disconnects from components where set screws or clamps

●are used to make electrical contact with the wire

●The copper sleeve protection terminal and the cable are fully connected and reliable


Product Detail

FAQ

Product Tags

400像素21 副本

Non-Insulated Ring Terminal
Cable size : 0.5~1.5mm²(A.W.G.22~16)  Imax=19A
Material: Copper Thickness:0.75mm

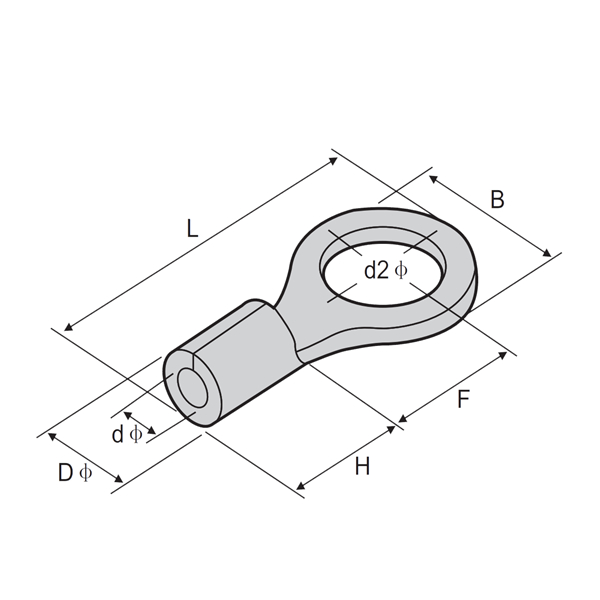

ITEM NO Dimension  (mm) A.W.G Screw dia.
B L F H d D
RNB 1.25-3 5.7 12.8 5.0 5.0 1.7 3.4 4 3.2
RNBS 1.25-3.5 5.7 12.8 5.0 5.0 1.7 3.4 6 3.7
RNBM 1.25-3.5 6.6 14.4 6.3 5.0 1.7 3.4 6 3.7
RNBL 1.25-3.5 8.0 15.8 7.0 5.0 1.7 3.4 6 3.7
RNBS 1.25-4 6.6 14.4 6.3 5.0 1.7 3.4 8 4.3
RNBL 1.25-4 8.0 15.8 7.0 5.0 1.7 3.4 8 4.3
RNBS 1.25-5 8.0 15.8 7.0 5.0 1.7 3.4 10 5.3
RNBL 1.25-5 9.8 17.5 8.5 5.0 1.7 3.4 10 5.3
RNB 1.25-6 11.6 21.8 11.1 5.0 1.7 3.4 1/4 6.4
RNB 1.25-8 11.6 21.8 11.1 5.0 1.7 3.4 5/16 8.4
RNB 1.25-10 13.6 25.5 13.9 5.0 1.7 3.4 3/8 10.5
RNB 1.25-12 19.2 30.5 16.5 5.0 1.7 3.4 1/2 13.0
Cable size:1.5~2.5mm²(A.W.G.16~14) Imax=27A Thickness:0.8mm
RNB 2-3 6.6 13.0 4.3 5.0 2.3 4.1 4 3.2
RNBS 2-3.5 6.6 13.0 4.3 5.0 2.3 4.1 6 3.7
RNBM 2-3.5 6.6 14.5 7.0 5.0 2.3 4.1 6 3.7
RNBL 2-3.5 8.5 16.8 7.8 5.0 2.3 4.1 6 3.7
RNBS 2-4 6.6 14.8 7.0 5.0 2.3 4.1 8 4.3
RNBL 2-4 8.5 16.8 7.8 5.0 2.3 4.1 8 4.3
RNBs 2-5 8.5 16.8 7.8 5.0 2.3 4.1 10 5.3
RNBL 2-5 9.5 16.8 7.3 5.0 2.3 4.1 10 5.3
RNB 2-6 12.0 21.8 11.0 5.0 2.3 4.1 1/4 6.4
RNB 2-8 12.0 21.8 11.0 5.0 2.3 4.1 5/16 8.4
RNB 2-10 13.6 25.5 13.9 5.0 2.3 4.1 3/8 10.5
RNB 2-12 19.2 30.6 16.5 5.0 2.3 4.1 1/2 13.0
Cable size:2.5~4mm²(A.W.G.14~12) Imax=37A Thickness:1.0mm
RNB 3.5-4 8.0 18.0 7.7 6.0 5.0 3.0 8 4.3
RNBS 3.5-5 8.0 18.0 7.7 6.0 5.0 3.0 10 0.3
RNBL 3.5-5 12.0 21.4 9.4 6.0 5.0 3.0 10 5.3
RNB 3.5-6 12.0 21.4 9.4 6.0 5.0 3.0 1/4 6.4
RNB 3.5-8 15.0 27.0 13.4 6.6 5.0 3.0 5/16 8.4
RNB 3.5-10 15.0 27.0 13.4 6.0 5.0 3.0 3/8 10.5
Cable size:4~6mm²(A.W.G.12~10) Imax=48A Thickness:1.0mm
RNB 5.5-3.5 7.2 16.2 5.9 7.0 3.4 5.6 6 3.7
RNBS 5.5-4 7.2 16.2 5.9 7.0 3.4 5.6 8 4.3
RNBL 5.5-4 9.5 19.8 8.3 7.0 3.4 5.6 8 4.3
RNB 5.5-5 9.5 19.8 8.3 7.0 3.4 5.6 10 5.3
RNB 5.5-6 12.0 23.5 13.0 7.0 3.4 5.6 1/4 6.4
RNB 5.5-8 15.0 27.6 13.7 7.0 3.4 5.6 5/16 8.4
RNB 5.5-10 15.0 27.7 13.7 7.0 3.4 5.6 3/8 10.5
RNB 5.5-12 19.2 32.4 16.0 7.0 3.4 5.6 1/2 13.0
Cable size:6~10mm²(A.W.G.8) Imax=62A Thickness:1.2mm
RNB 8-4 8.8 23.8 9.3 8.5 4.5 7.2 8 4.3
RNBS 8-5 8.8 23.8 11.1 8.5 4.5 7.2 10 5.3
RNBM 8-5 12.0 23.8 9.3 8.5 4.5 7.2 10 5.3
RNBL 8-5 15.0 29.8 13.8 8.5 4.5 7.2 10 5.3
RNBS 8-6 12.0 23.8 9.3 8.5 4.5 7.2 1/4 6.4
RNBL 8-6 15.0 29.8 13.8 8.5 4.5 7.2 1/4 6.4
RNB 8-8 15.0 29.8 13.8 8.5 4.5 7.2 5/16 8.4
RNB 8-10 15.0 29.8 13.8 8.5 4.5 7.2 3/8 10.5
RNB 8-12 20.0 33.5 15.0 8.5 4.5 7.2 1/2 13.0
Cable size:10~16mm²(A.W.G.6) Imax=88A Thickness:1.4mm
RNB 14-4 12.0 29.8 13.3 10.5 5.8 9.0 8 4.3
RNB 14-5 12.0 29.8 13.3 10.5 5.8 9.0 10 5.3
RNBS 14-6 12.0 29.8 13.3 10.5 5.8 9.0 1/4 6.4
RNBL 14-6 16.0 32.8 13.3 10.5 5.8 9.0 1/4 6.4
RNB 14-8 16.0 32.8 14.5 10.5 5.8 9.0 5/16 8.4
RNB 14-10 16.0 32.8 14.5 10.5 5.8 9.0 3/8 10.5
RNB 14-12 22.0 41.0 19.5 10.5 5.8 9.0 1/2 13.0
Cable size:16~25mm²(A.W.G.4) Imax=115A Thickness:1.7mm
RNBS 22-5 12.2 33.2 14.5 12.0 7.7 11.5 10 5.3
RNBL 22-5 16.5 33.7 13.5 12.0 7.7 11.5 10 5.3
RNBS 22-6 12.2 33.7 14.5 12.0 7.7 11.5 1/4 6.4
RNBL 22-6 16.5 33.7 13.5 12.0 7.7 11.5 1/4 6.4
RNB 22-8 16.5 33.7 13.5 12.0 7.7 11.5 5/16 8.4
RNB 22-10 16.5 33.7 13.5 12.0 7.7 11.5 3/8 10.5
RNB 22-11 22.0 42.5 19.5 12.0 7.7 11.5 7/16 11.5
RNB 22-12 22.0 42.5 19.5 12.0 7.7 11.5 1/2 13.0
Cable size:35~50mm²(A.W.G.2) Imax=160A Thickness:1.8mm
RNB 38-5 15.3 39.0 18.3 14.0 9.4 13.3 10 5.3
RNB 38-6 15.3 39.0 18.3 14.0 9.4 13.3 1/4 6.4
RNBS 38-8 15.3 39.0 18.3 14.0 9.4 13.3 5/16 8.4
RNBL 38-8 22.0 2.7 17.7 14.0 9.4 13.3 5/16 8.4
RNBS 38-10 15.3 39.0 18.3 14.0 9.4 13.3 3/8 10.5
RNBL 38-10 22.0 42.7 17.7 14.0 9.4 13.3 3/8 10.5
RNB 38-11 22.0 42.7 17.7 14.0 9.4 13.3 7/16 11.5
RNB 38-12 22.0 42.7 17.7 14.0 9.4 13.3 1/2 13.0
Cable size:50~70mm²(A.W.G.1/0) Imax=215A Thickness:1.8mm
RNB 60-6 22.0 49.7 20.7 18.0 11.4 15.4 1/4 6.4
RNB 60-8 22.0 49.7 20.7 18.0 11.4 15.4 5/16 8.4
RNB 60-10 22.0 49.7 20.7 18.0 11.4 15.4 3/8 10.5
RNB 60-11 22.0 49.7 20.7 18.0 11.4 15.4 7/16 11.5
RNB 60-12 22.0 49.7 20.7 18.0 11.4 15.4 1/2 13.0
RNB 60-14 32.0 57.5 23.5 18.0 11.4 15.4 9/16 15.0
RNB 60-16 32.0 57.5 23.5 18.0 11.4 15.4 5/8 17.0
RNB 60-18 32.0 57.5 23.5 18.0 11.4 15.4 11/16 19.0
RNB 60-20 32.0 57.5 23.5 18.0 11.4 15.4 3/4 21.0
RNB 60-22 32.0 57.5 23.5 18.0 11.4 15.4 7/8 23.0
Cable size:70~95mm²(A.W.G.2/0) Imax=235A Thickness:1.9mm
RNB 70-6 24.0 51.0 20.0 19.0 13.3 17.5 1/4 6.4
RNB 70-8 24.0 51.0 20.0 19.0 13.3 17.5 5/16 8.4
RNB 70-10 24.0 51.0 20.0 19.0 13.3 17.5 3/8 10.5
RNB 70-11 24.0 51.0 20.0 19.0 13.3 17.5 7/16 11.5
RNB 70-12 24.0 51.0 20.0 19.0 13.3 17.5 1/2 13.0
RNB 70-14 32.0 61.0 6.0 19.0 13.3 17.5 9/16 15.0
RNB 70-16 32.0 61.0 6.0 19.0 13.3 17.5 5/8 17.0
RNB 70-18 32.0 61.0 6.0 19.0 13.3 17.5 11/16 19.0
RNB 70-20 32.0 61.0 6.0 19.0 13.3 17.5 3/4 21.0
RNB 70-22 32.0 61.0 6.0 19.0 13.3 17.5 7/8 23.0
Cable size:95~`120mm²(A.W.G.3/0) Imax=255A Thickness:2.2mm
RNB 80-6 27.0 54.2 20.7 20.0 14.5 19.5 1/4 6.4
RNB 80-8 27.0 54.2 20.7 20.0 14.5 19.5 5/16 8.4
RNB 80-10 27.0 54.2 20.7 20.0 14.5 19.5 3/8 10.5
RNB 80-11 27.0 54.2 20.7 20.0 14.5 19.5 7/16 11.5
RNB 80-12 27.0 54.2 20.7 20.0 14.5 19.5 1/2 13.0
RNB 80-14 32.0 68.0 32.0 20.0 14.5 19.5 9/16 15.0
RNB 80-16 32.0 68.0 32.0 20.0 14.5 19.5 5/8 17.0
RNB 80-18 32.0 68.0 32.0 20.0 14.5 19.5 11/16 19.0
RNB 80-20 32.0 68.0 32.0 20.0 14.5 19.5 3/4 21.0
RNB 80-22 32.0 68.0 32.0 20.0 14.5 19.5 7/8 23.0
Cable size:120~150mm²(A.W.G.4/0) Imax=300A Thickness:2.6mm
RNB 100-6 28.5 55.6 20.4 21.0 16.4 22.1 1/4 6.4
RNB 100-8 28.5 55.6 20.4 21.0 16.4 22.1 5/16 8.4
RNB 100-10 28.5 55.6 20.4 21.0 16.4 22.1 3/8 10.5
RNB 100-11 28.5 55.6 20.4 21.0 16.4 22.1 7/16 11.5
RNB 100-12 28.5 55.6 20.4 21.0 16.4 22.1 1/2 13.0
RNB 100-14 31.0 69.0 32.0 21.0 16.4 22.1 9/16 15.0
RNB 100-16 31.0 69.0 32.0 21.0 16.4 22.1 5/8 17.0
RNB 100-18 31.0 69.0 32.0 21.0 16.4 22.1 11/16 19.0
RNB 100-20 31.0 69.0 32.0 21.0 16.4 22.1 3/4 21.0
RNB 100-22 31.0 69.0 32.0 21.0 16.4 22.1 7/8 23.0
Cable size:150~185mm²(A.W.G.250/300MCM) Imax=395A Thickness:3.2mm
RNB 150-8 36.0 66.0 23.0 27.0 19.5 26.6 5/16 8.4
RNB 150-10 36.0 66.0 23.0 27.0 19.5 26.6 3/8 10.5
RNB 150-11 36.0 66.0 23.0 27.0 19.5 26.6 7/16 11.5
RNB 150-12 36.0 66.0 23.0 27.0 19.5 26.6 1/2 13.0
RNB 150-14 36.0 66.0 23.0 27.0 19.5 26.6 9/16 15.0
RNB 150-16 36.0 66.0 23.0 27.0 19.5 26.6 5/8 17.0
RNB 150-18 36.0 81.0 36.0 27.0 19.5 26.6 11/16 19.0
RNB 150-20 36.0 81.0 36.0 27.0 19.5 26.6 3/4 21.0
RNB 150-22 36.0 81.0 36.0 27.0 19.5 26.6 7/8 23.0
RNB 150-24 36.0 81.0 36.0 27.0 19.5 26.6 15/16 25.0
RNB 150-27 36.0 81.0 36.0 27.0 19.5 26.6 1 28.0
Cable size:185~240mm²(A.W.G.300/350MCM) Imax=440A Thickness:3.5mm
RNB 180-8 38.5 69.0 24.5 28.5 21.0 28.6 5/16 8.4
RNB 180-10 38.5 69.0 24.5 28.5 21.0 28.6 3/8 10.5
RNB 180-11 38.5 69.0 24.5 28.5 21.0 28.6 7/16 11.5
RNB 180-12 38.5 69.0 24.5 28.5 21.0 28.6 1/2 13.0
RNB 180-14 38.5 69.0 24.5 28.5 21.0 28.6 9/16 15.0
RNB 180-16 38.5 69.0 24.5 28.5 21.0 28.6 5/8 17.0
RNB 180-18 38.5 86.6 39.0 28.5 21.0 28.6 11/16 19.0
RNB 180-20 38.5 86.6 39.0 28.5 21.0 28.6 3/4 21.0
RNB 180-22 38.5 86.6 39.0 28.5 21.0 28.6 7/8 23.0
RNB 180-24 38.5 86.6 39.0 28.5 21.0 28.6 15/16 25.0
RNB 180-27 38.5 86.6 39.0 28.5 21.0 28.6 1 28.0
Cable size:240~300mm²(A.W.G.400/500MCM) Imax=470A Thickness:3.9mm
RNB 200-8 44.0 72.0 24.5 31.5 24.0 32.6 5/16 8.4
RNB 200-10 44.0 72.0 24.5 31.5 24.0 32.6 3/8 10.5
RNB 200-11 44.0 72.0 24.5 31.5 24.0 32.6 7/16 11.5
RNB 200-12 44.0 72.0 24.5 31.5 24.0 32.6 1/2 13.0
RNB 200-14 44.0 72.0 24.5 31.5 24.0 32.6 9/16 15.0
RNB 200-16 44.0 72.0 24.5 31.5 24.0 32.6 5/8 17.0
RNB 200-18 44.0 91.0 37.5 31.5 24.0 32.6 11/16 19.0
RNB 200-20 44.0 91.0 37.5 31.5 24.0 32.6 3/4 21.0
RNB 200-22 44.0 91.0 37.5 31.5 24.0 32.6 7/8 23.0
RNB 200-24 44.0 91.0 37.5 31.5 24.0 32.6 15/16 25.0
RNB 200-27 44.0 91.0 37.5 31.5 24.0 32.6 1 28.0
Cable size:300~400mm²(A.W.G.500/600MCM) Imax=650A Thickness:4.2mm
RNB 325-8 50.5 88.0 33.5 35.5 28.0 37.1 5/16 8.4
RNB 325-10 50.5 88.0 33.5 35.5 28.0 37.1 3/8 10.5
RNB 325-11 50.5 88.0 33.5 35.5 28.0 37.1 7/16 11.5
RNB 325-12 50.5 88.0 33.5 35.5 28.0 37.1 1/2 13.0
RNB 325-14 50.5 88.0 33.5 35.5 28.0 37.1 9/16 15.0
RNB 325-16 50.5 88.0 33.5 35.5 28.0 37.1 5/8 17.0
RNB 325-18 50.5 105.7 45.0 35.5 28.0 37.1 11/16 19.0
RNB 325-20 50.5 105.7 45.0 35.5 28.0 37.1 3/4 21.0
RNB 325-22 50.5 105.7 45.0 35.5 28.0 37.1 7/8 23.0
RNB 325-24 50.5 105.7 45.0 35.5 28.0 37.1 15/16 25.0
RNB 325-27 50.5 105.7 45.0 35.5 28.0 37.1 1 28.0
