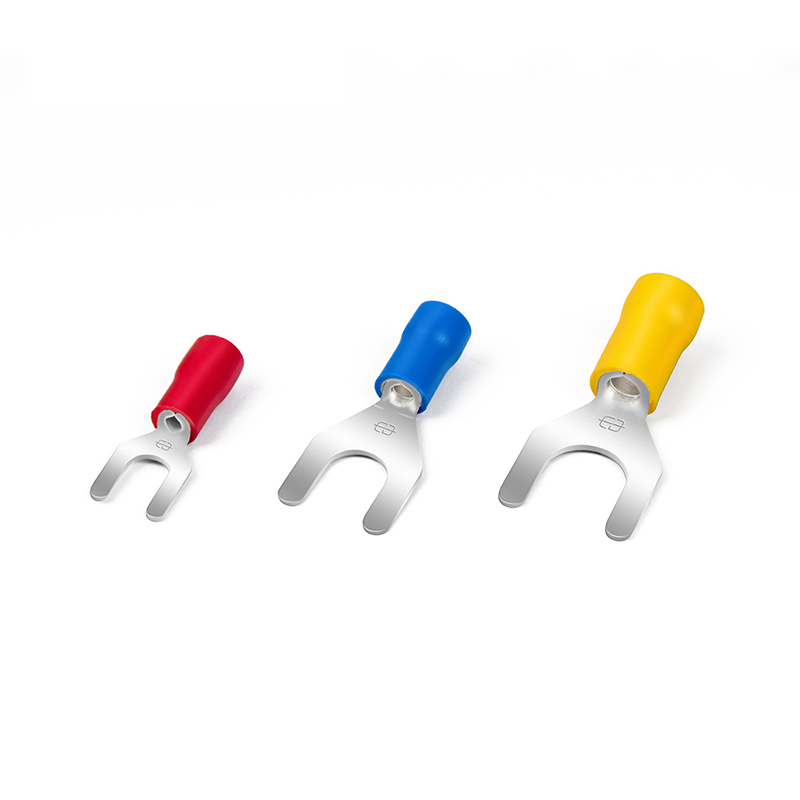

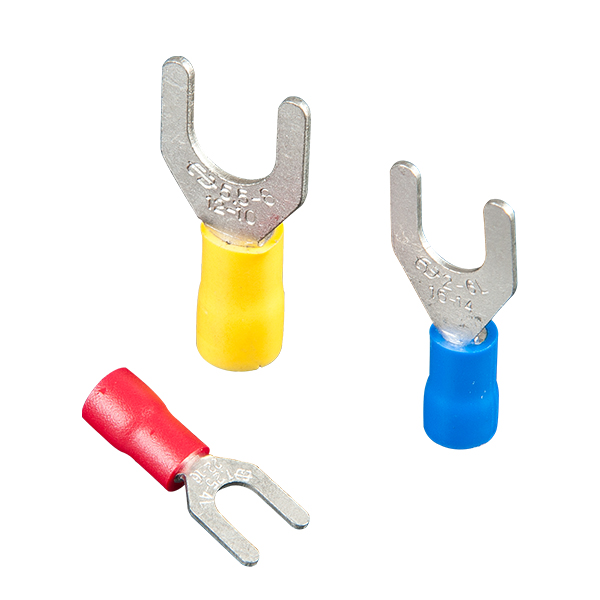

Pvc-Insulated Double Crimp Spade Terminal

Short Description:

Product Feature

●Conductor: Copper

●Insulation: PVC

●Finished: Tin-Plated/Brazed seam



Characteristics

●Heat resistant: _10~75℃

●Terminals can be installed and removed without completely removing the mounting screws

●The copper sleeve protection terminal and the cable are fully connected and reliable

●According to UL486 requirements


Product Detail

FAQ

Product Tags

400像素27 副本

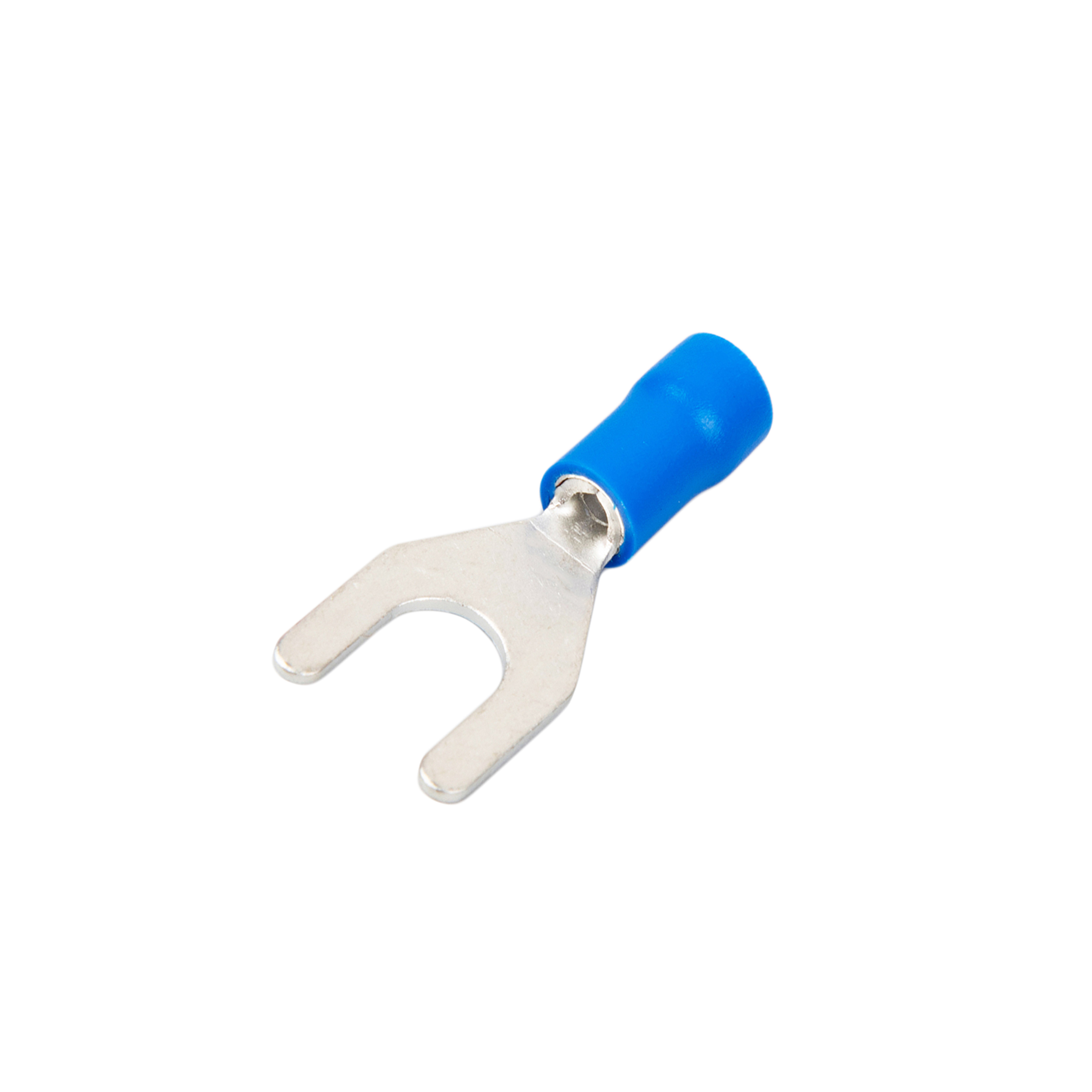

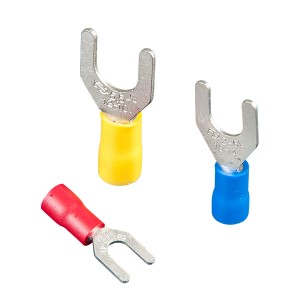

Insulated Double Crimp Spade Terminal
Cable size : 0.5~1.5mm²(A.W.G.22~16) Imax=19A
Material: Copper Insulating material: Vinyl. Nylon Thickness:0.75mm

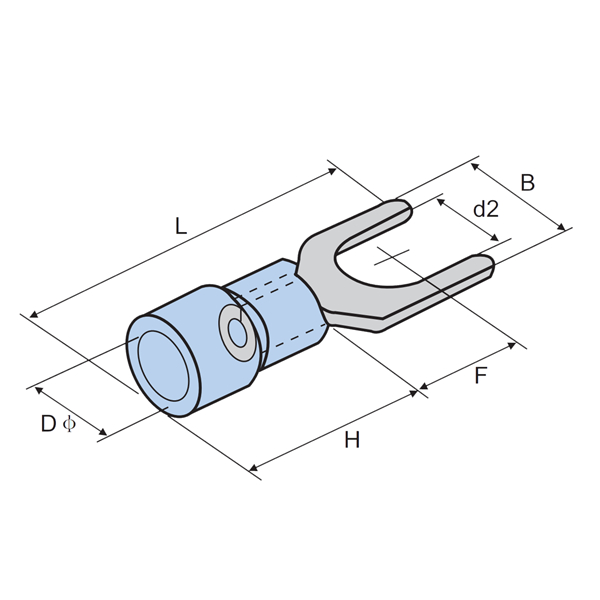

ITEM NO Dimension  (mm) A.W.G. Screw dia. Color
B L F H D
SD 1.25-3 5.7 21.5 6.5 10.5 4.3 4 3.2 Red
SDS 1.25-3.5 5.7 21.5 6.5 10.5 4.3 6 3.7
SDL 1.25-3.5 6.4 21.5 6.5 10.5 4.3 6 3.7
SDS 1.25-4 6.4 21.5 6.5 10.5 4.3 8 4.3
SDM 1.25-4 7.2 21.5 6.5 10.5 4.3 8 4.3
SDL 1.25-4 8.1 21.5 6.5 10.5 4.3 8 4.3
SDS 1.25-5 8.1 21.5 6.5 10.5 4.3 10 5.3
SDL 1.25-5 9.5 21.5 6.5 10.5 4.3 10 5.3
SDS 1.25-6 9.5 21.5 6.5 10.5 4.3 1/4 6.4
SDL 1.25-6 12.0 27.2 11.0 10.5 4.3 1/4 6.4
Cable size:1.5~2.5mm²(A.W.G.16~14) Imax=27A Thickness:0.8mm
SD 2-3 5.7 21.5 6.5 10.5 4.9 4 3.2 Blue
SDS 2-3.5 5.7 21.5 6.5 10.5 4.9 6 3.7
SDL 2-3.5 6.0 21.5 6.5 10.5 4.9 6 3.7
SDS 2-4 6.4 21.5 6.5 10.5 4.9 8 4.3
SDM 2-4 7.2 21.5 6.5 10.5 4.9 8 4.3
SDL 2-4 7.9 21.5 6.5 10.5 4.9 8 4.3
SDS 2-5 8.1 21.5 6.5 10.5 4.9 10 5.3
SDL 2-5 9.5 21.5 6.5 10.5 4.9 10 5.3
SDS 2-6 9.5 21.5 6.5 10.5 4.9 1/4 6.4
SDL 2-6 12.0 21.5 11.0 10.5 4.9 1/4 6.4
Cable size:2.5~4mm²(A.W.G14~12) Imax=37A Thickness:1.0mm
SD 3.5-3 5.7 26.4 7.0 13.5 6.2 4 3.2 Black
SD 3.5-4 8.0 26.4 7.0 13.5 6.2 8 4.3
SD 3.5-5 8.0 26.4 7.0 13.5 6.2 10 5.3
SD 3.5-6 12.0 28.0 12.1 13.5 6.2 1/4 6.4
Cable size:4~6mm²(A.W.G.12~10) Imax=48A Thickness:1.0mm
SD 5.5-3.5 7.1 24.8 7.5 13.5 6.7 6 3.7 Yellow
SDS 5.5-4 8.3 26.0 7.5 13.5 6.7 8 4.3
SDL 5.5-4 9.0 26.0 7.5 13.5 6.7 8 4.3
SD 5.5-5 9.0 26.0 7.5 13.5 6.7 10 5.3
SDS 5.5-6 9.0 26.0 7.5 13.5 6.7 1/4 6.4
SDL 5.5-6 12.0 32.0 12.0 13.5 6.7 1/4 6.4
SD 5.5-8 14.0 30.0 11.5 13.5 6.7 5/16 8.4
